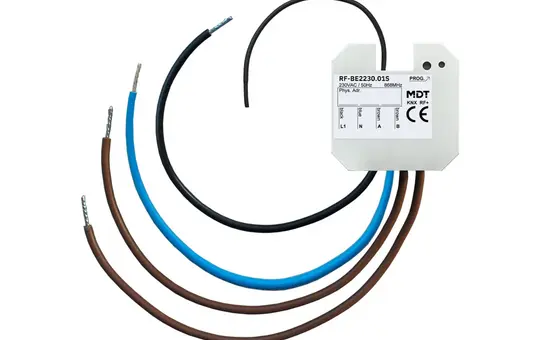

MDT RF-BE2230.01S KNX-RF Radio Push Button Interface 2-way, Secure

MDT RF-BE2230.01S KNX-RF Radio Push Button Interface | 2-way, Secure

Manufacturer: MDT
Article no.: 20073600
EAN: 4251916114442
Manufacturer item number: RF-BE2230.01S
Manufacturer type: RF-BE2230.01S
Weight: 0,052 kg
Available on request
Electrical appliance take-back
pcs

This item is a new release and is expected to be available for the first time at the end of Q1 2027.



KNX RF+ push-button interface / push-button interface 2-gang, flush-mounted, version 230 V AC, secure. Version for control signals 230 V AC. For installation in the switch box. Maximum cable length 100 m. For operation within the EU, 868 MHz. KNX RF+ protocol in system mode. KNX Data Secure. Commissioning from ETS 5. For connection of 230 V push-buttons, switches, motion detectors. 4 integrated logic modules, e.g. for evaluation of inputs (window closed or send second object). Normally closed and normally open operation, adjustable length of button press. Dimmer and shutter function for single and double push-button operation. Sending values, forced control and switching commands adjustable. Short/long button press with 2 objects. Integrated pulse and switch counter. Cyclic sending adjustable. Connection via MDT KNX RF+ radio line coupler. For modernisation without laying KNX bus cables.
BAB-Tec
No
Bluetooth
No
Brand
MDT
Casambi
No
Class
Button interface
DALI
No
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
Yes
KNX-RF
Yes
KNX-Secure
Yes
KNX-TP
No
Manufacturer item number
RF-BE2230.01S
Manufacturer type
RF-BE2230.01S
Manufacturer's Description
KNX RF+ Universal Interface 2 gang, flush mounted, Secure
Mounting type
flush-mounted
Number of inputs
2
Rated voltage inputs
230V AC
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Type of transmission
radio
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
