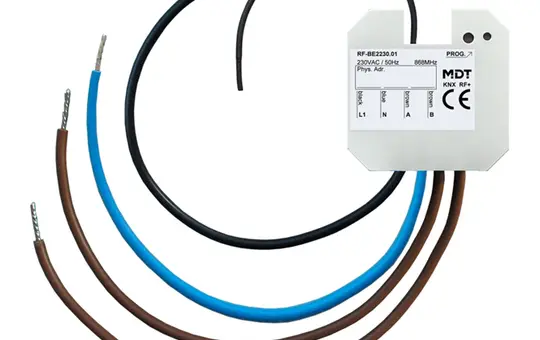

MDT RF-BE2230.01 KNX-RF Wireless Push Button Interface | 2-fold

Manufacturer: MDT

Article no.: 20002695

EAN: 4251916148546

Manufacturer item number: RF-BE2230.01

Manufacturer type: RF-BE2230.01

Weight: 0,052 kg

Not available

Attention! This item has a successor or replacement item, which you can access here: 20073600

KNX RF+ Push Button Interface / Push Button Interface 2-gang, flush-mounted, version 230 V AC. Version for control signals 230 V AC. For installation in the switch box, maximum cable length 100 m. For operation within the EU, 868 MHz. New KNX RF+ protocol in system mode. Commissioning from ETS 5 onwards. For connection of 230 V push buttons, switches, motion detectors. 4 integrated logic modules, e.g. for evaluation of inputs (window closed or send second object). Normally closed or normally open operation, adjustable push duration. Dimmer and shutter function for single and two-button operation. Sending of values, forced control and switching commands adjustable. Push button operation with short/long press and 2 objects. Integrated impulse and switching counter. Cyclic sending adjustable. Installation in the switch box. Connection via MDT KNX RF+ radio line coupler. For modernisation without laying bus cables. Supply voltage 230 V AC. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm.

BAB-Tec: No
Bluetooth: No
Brand: MDT
Casambi: No
Class: Button interface
Colour: white
Configuration: binary
DALI: No
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
Installation location: Wall
JUNG HOME: No
KNX: Yes
KNX-RF: Yes
KNX-Secure: No
KNX-TP: No
Manufacturer item number: RF-BE2230.01
Manufacturer type: RF-BE2230.01
Manufacturer's Description: KNX RF+ Universal Interface 2 gang, flush mounted
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of inputs: 2
Potential free: Yes
Rated voltage inputs: 230V AC
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: radio
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
