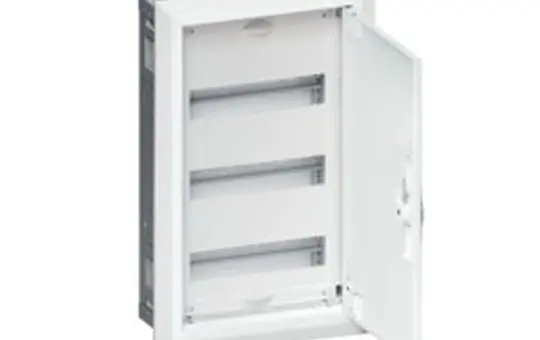

HAGER FWU31S Field Distributor IP30 with PE/N Terminals 1 field | 500 mm

HAGER FWU31S Field Distributor IP30 with PE/N Terminals | 1 field | 500 mm

Manufacturer: HAGER
Article no.: 20009490
EAN: 3250612739479
Manufacturer item number: FWU31S
Manufacturer type: FWU31S
Weight: 8 kg
Available on request
Electrical appliance take-back
pcs
Flush-Mount Distribution Board UP 36PLE with univers, IP30, SKII, niche dimensions 507x315x115 mm.

Flush-mount distribution board UP/HW certified according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consisting of cabinet, cover frame and steel sheet door, powder-coated in RAL 9010 (pure white). Complete distribution board equipped with installation kit including profiled mounting rails, 7.5 mm high DIN rails with 125 mm centre spacing and matching SKII touch protection covers made of plastic, including 1x PE and 2x N QuickConnect terminal blocks mounted on a carrier.

Cable entries top/bottom via removable plastic flange plates with pre-perforations and integrated cable strain relief. Side and rear fold-out power entries. Door with internally adjustable hinges and an opening angle of 110°. Doors can be hinged on the right or left, tool-free reversible door hinge.
Brand
HAGER
Class
Complete cabinets
Colour
white
Depth in mm
125
Height in mm
553
Manufacturer item number
FWU31S
Manufacturer type
FWU31S
Mounting type
cavity wall
Number of distribution panels
1
Protection class (IP)
IP30
Width in mm
353
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de
