HAGER FZ12MM Patch Panel for Distribution Installation 12-fold, e-data

HAGER FZ12MM Patch Panel for Distribution Installation | 12-fold, e-data

Manufacturer: HAGER
Article no.: 20007629
EAN: 7611912539125
Manufacturer item number: FZ12MM
Manufacturer type: FZ12MM
Weight: 0,44 kg
Available on request
Electrical appliance take-back
pcs

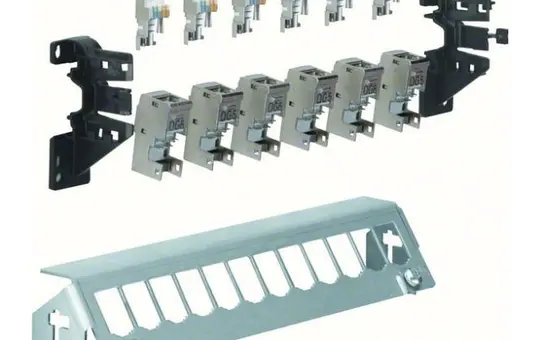

Patch panel, universal 12-port (E-Data) incl. 6x RJ45 modules, for DIN rail/mounted. Patch panel with 12 slots for installation in multimedia panels on DIN rails, mounting rails, and mounting plates. Consists of a universal bracket made of galvanized steel sheet with cutouts for data modules, insulated plastic carrier for snapping onto DIN rail, screwed onto mounting plates or mounting rails in distribution cabinets. Included are: 6 fully shielded data modules with zinc die-cast metal housing with strain relief, individually shielded RJ45 sockets (Category 6, 500 MHz, link verified) for connection of cables (Category 6A/7/7A) and labelling strips. Note: One cable from the patch panel must be connected to the equipotential bonding bar (functional equipotential bonding according to DIN EN 50310 - VDE 0800-2-310) (not included).
Brand
HAGER
Class
Patch panel
Manufacturer item number
FZ12MM
Manufacturer type
FZ12MM
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
