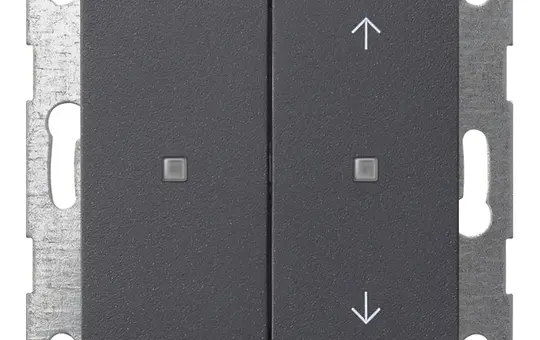

GIRA 517528 KNX pushbutton system 55 | 2-fold, arrows | anthracite

Manufacturer: GIRA

Article no.: 20032009

EAN: 4010337090847

Manufacturer item number: 517528

Manufacturer type: 517528

Weight: 0,093 kg

Available on request

76,77 €

incl. VAT + shipping

pcs

Push button with 2-way rocker, unprinted, arrow symbols, for Gira One and KNX System 55, anthracite. Features: Push button for KNX and Gira One with integrated bus coupling unit. Integrated temperature sensor. Rocker or button function can be set for each control surface. Control of up to four functions is possible via the button function of the KNX push button. Operating functions: Operating concept: Button or rocker function can be parameterized. Switching, dimming and color temperature, color control and brightness, blinds, value transmitter, scene extension, 2-channel operation and controller extension. Switching: The command when pressed and/or released can be set (no reaction, switch on, switch off, toggle). Dimming and color temperature: Brightness and/or color temperature, the command when pressed, the time between switching and dimming, dimming in different stages, telegram repetition when pressed for a long time and the sending of a stop telegram at the end of the operation c

Brand: GIRA
Class: Touch sensors
Color: anthracite
Different bus system: -
fits in 55 switch range: Yes
Gira One: Yes
Installation location: Wall
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: 517528
Manufacturer type: 517528
Manufacturer's color: anthracite
Mounting type: flush-mounted
Number of buttons: 2
old Voltus number: 1699666
Operating mode: Button
RGB status LED: Yes
Series: ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: GIRA
Class: Touch sensors
Color: anthracite
Different bus system: -
fits in 55 switch range: Yes
Gira One: Yes
Installation location: Wall
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: 517528
Manufacturer type: 517528
Manufacturer's color: anthracite
Mounting type: flush-mounted
Number of buttons: 2
old Voltus number: 1699666
Operating mode: Button
RGB status LED: Yes
Series: ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable
