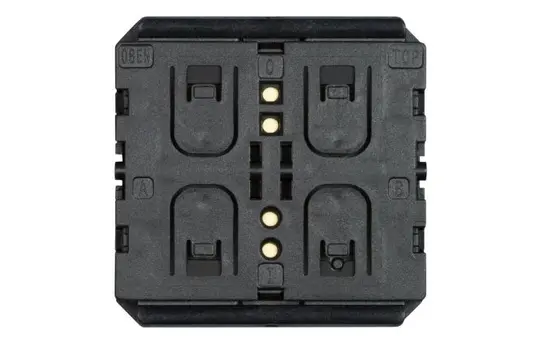

ZF AFIM-1010 KNX RF pushbutton sensor | 4-fold

Manufacturer: ZF

Article no.: 20009034

EAN: 4028232328286

Manufacturer item number: AFIM-1010

Manufacturer type: AFIM-1010

Weight: 0,0167 kg

Available on request

50,61 €

incl. VAT + shipping

pcs

The KNX push-button module (AFIM-1010) is designed for use in building technology. It can be used, for example, to control lighting and shutters. The push-button module enables wireless communication with KNX devices and can be configured using ETS 5. It can be installed in standard frames and panels. Technical specifications: Antenna: PCB Frequency: 868.3 MHz (± 21.7 kHz) Transmit power: -2 dBm Radio protocol: KNX RF1.R Modulation: FSK Radio channels: 1 Range: up to 30 m indoors Operating temperature: 20 to +45 degrees Celsius

Brand: ZF
Class: Touch sensors
Color: black
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
KNX: Yes
KNX-RF: Yes
Manufacturer item number: AFIM-1010
Manufacturer type: AFIM-1010
Mounting type: Surface-mounted
Number of buttons: 4
old Voltus number: 1683536
Operating mode: Button
Protection class (IP): -
Series: Sortiment 55
suitable for installation in switch ranges: Yes
Surface: -
Type of transmission: radio

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Manufacturer information

ZF
ZF Friedrichshafen AG
Löwentaler Straße 20
88046 Friedrichshafen
DE

postoffice@zf.com
www.zf.com/mobile/de/homepage/homepage.html

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ZF
Class: Touch sensors
Color: black
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
KNX: Yes
KNX-RF: Yes
Manufacturer item number: AFIM-1010
Manufacturer type: AFIM-1010
Mounting type: Surface-mounted
Number of buttons: 4
old Voltus number: 1683536
Operating mode: Button
Protection class (IP): -
Series: Sortiment 55
suitable for installation in switch ranges: Yes
Surface: -
Type of transmission: radio
