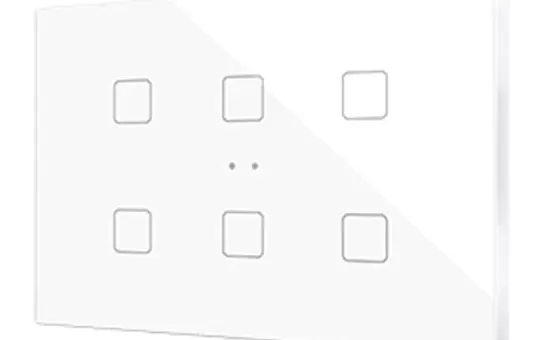

ZENNIO ZVIFXLX6GW KNX pushbutton sensor Flat XL 6-fold | shiny white

ZENNIO ZVIFXLX6GW KNX pushbutton sensor Flat XL | 6-fold | shiny white

Manufacturer: ZENNIO
Article no.: 20010305
Manufacturer item number: ZVIFXLX6GW
Manufacturer type: ZVIFXLX6GW
Weight: 0,02 kg
In stock
Delivery: 2-3 business days
164,22 €
incl. VAT + shipping
pcs
Printed glass touch panel (image customizable via web application) - 4, 6, 8 or 10 touch areas - Temperature controller - 2 analog/digital inputs - Built-in temperature sensor - Backlit touch areas to indicate status - Brightness and proximity sensor - Total data saving in case of KNX bus failure - Integrated KNX BCU (TP1-256) - Dimensions 120 x 82 x 37 mm (protrudes 9 mm from the wall) - Flush mounting on backbox - Conformity with CE, UKCA, RCM directives (markings on the back) Technical specifications: Device type: Electrical operation control device External power supply: Not required Operating temperature: 0 to +55 degrees Celsius Storage temperature: -20 to +55 degrees Celsius Operating humidity: 5 to 95% Storage humidity: 5 to 95% Additional features: Class B Protection class: III Operating mode: Continuous operation Device action type: Type 1 Duration of electrical Load: Long Protection class: IP20
Brand
ZENNIO
Class
Touch sensors
Color
white
Different bus system
-
Installation location
Wall
Integrated binary input
Yes
Integrated room temperature controller
Yes
KNX
Yes
KNX-TP
Yes
Manufacturer item number
ZVIFXLX6GW
Manufacturer type
ZVIFXLX6GW
Manufacturer's color
white
Material
Glass
Mounting type
flush-mounted
Number of binary inputs
2
Number of buttons
6
old Voltus number
1702967
Operating mode
Button
Proximity sensor
Yes
Series
Flat XL
Status LED, control light
Yes
Surface
glänzend
Temperature sensor
Yes
Type of transmission
Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt (en)
Manufacturer information
ZENNIO
Zennio Avance y Tecnología S.L.
C/ Río Jarama, 132. Nave P-8.11
45007 Toledo
ES

info@zennio.com
www.zennio.com/
