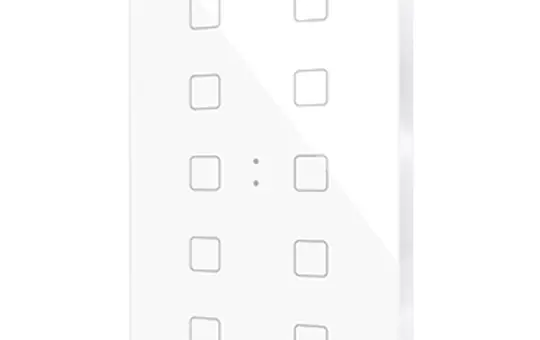

ZENNIO ZVIFXLX10W KNX pushbutton sensor Flat XL 10x | white

ZENNIO ZVIFXLX10W KNX pushbutton sensor Flat XL | 10x | white

Manufacturer: ZENNIO
Article no.: 20010300
EAN: 8411080802217
Manufacturer item number: ZVIFXLX10W
Manufacturer type: ZVIFXLX10W
Weight: 0,2 kg
Available on request
185,64 €
incl. VAT + shipping
pcs
Printed glass touch panel (image customizable via web application) - 4, 6, 8 or 10 touch areas - Temperature controller - 2 analog/digital inputs - Built-in temperature sensor - Backlit touch areas to indicate status - Brightness and proximity sensor - Total data saving in case of KNX bus failure - Integrated KNX BCU (TP1-256) - Dimensions 120 x 82 x 37 mm (protrudes 9 mm from the wall) - Flush-mounted on backbox - Conformity with CE, UKCA, RCM directives (markings on the back) Technical specifications: Device type: Electrical operation control unit External power supply: Not required Operating temperature: 0 to +55 degrees Celsius Storage temperature: -20 to +55 degrees Celsius Operating humidity: 5 to 95% Storage humidity: 5 to 95% Additional features: Class B Protection class: III Operating mode: Continuous operation
https://tmd.zennioapps.com/tmd/bm/public/login.php?ts=1751895608.9086
Brand
ZENNIO
Class
Touch sensors
Color
white
Different bus system
-
Installation location
Wall
Integrated binary input
Yes
Integrated room temperature controller
Yes
KNX
Yes
KNX-TP
Yes
Manufacturer item number
ZVIFXLX10W
Manufacturer type
ZVIFXLX10W
Manufacturer's color
white
Material
Glass
Mounting type
flush-mounted
Number of binary inputs
2
Number of buttons
10
old Voltus number
1702979
Operating mode
Button
Proximity sensor
Yes
Series
Flat XL
Status LED, control light
Yes
Surface
glänzend
Temperature sensor
Yes
Type of transmission
Cable
