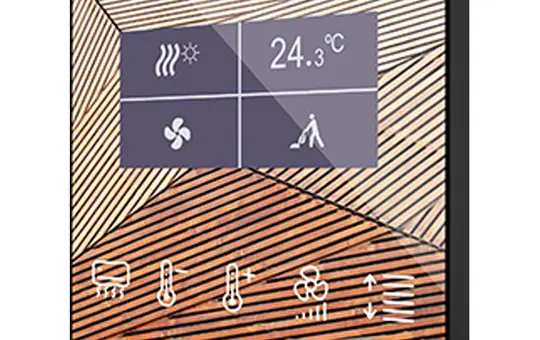

ZENNIO ZVIFDV2 KNX pushbutton sensor flat display | standard | custom

Manufacturer: ZENNIO

Article no.: 20042356

EAN: 8411080802026

Manufacturer item number: ZVIFDV2

Manufacturer type: Flat Display v2

Weight: 0,101 kg

Available on request

209,74 €

incl. VAT + shipping

pcs

- Customizable printed glass with 5 backlit touch areas - 2.4" OLED display (128x64 pixels) - 2 analog/digital inputs - Temperature controller - Clock function (subject to update by devices with RTC or NTP client) - Built-in temperature, humidity, brightness and proximity sensors - Total data saving in case of KNX bus failure - Integrated KNX BCU (TP1-256) - Dimensions 82.1 x 82.1 x 33.2 mm (9 mm outside the wall) - Flush mounting on backbox - Conformity to CE, UKCA, RCM directives (markings on the back) Technical specifications: Device type Electrical: Operation control unit External power supply: Not required Operating temperature: 0 to +55 degrees Celsius Storage temperature: -20 to +55 degrees Celsius Operating humidity: 5 to 95% Storage humidity: 5 to 95% Additional features Class: B Protection class: III Operating mode: Continuous operation
https://tmd.zennioapps.com/tmd/bm/public/login.php?ts=1751895893.5747

Brand: ZENNIO
Class: Touch sensors
Color: -
Different bus system: -
Installation location: Wall
KNX: Yes
Manufacturer item number: ZVIFDV2
Manufacturer type: Flat Display v2
Manufacturer's color: custom
Mounting type: Surface-mounted
old Voltus number: 1702111
Operating mode: Button
RGB lighting control: Yes
Status LED, control light: Yes
Surface: glänzend
Type of transmission: Cable
with display: Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt (en)

Manufacturer information

ZENNIO
Zennio Avance y Tecnología S.L.
C/ Río Jarama, 132. Nave P-8.11
45007 Toledo
ES

info@zennio.com
www.zennio.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ZENNIO
Class: Touch sensors
Color: -
Different bus system: -
Installation location: Wall
KNX: Yes
Manufacturer item number: ZVIFDV2
Manufacturer type: Flat Display v2
Manufacturer's color: custom
Mounting type: Surface-mounted
old Voltus number: 1702111
Operating mode: Button
RGB lighting control: Yes
Status LED, control light: Yes
Surface: glänzend
Type of transmission: Cable
with display: Yes
