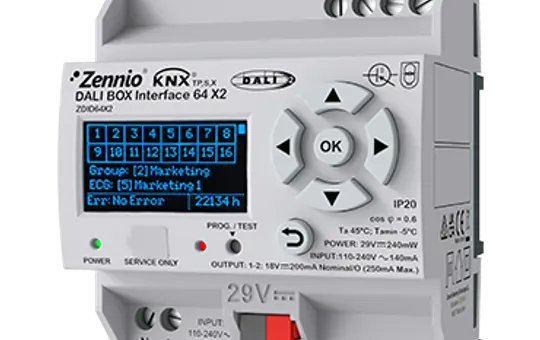

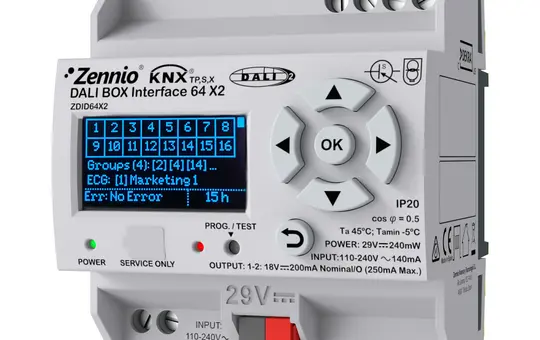

ZENNIO ZDID64X2 KNX-DALI Interface DALI BOX 2 channels, 64 operating devices per channel

ZENNIO ZDID64X2 KNX-DALI Interface DALI BOX | 2 channels, 64 operating devices per channel

Manufacturer: ZENNIO
Article no.: 20054618
EAN: 8435740188800
Manufacturer item number: ZDID64X2
Manufacturer type: ZDID64X2
Weight: 0,3 kg
Available on request
Electrical appliance take-back
pcs
KNX-DALI interface for DIN rail mounting (4.5 modules) with two independent DALI channels, for controlling up to 64 DALI ballasts per channel, which can be assigned to up to 16 groups per channel.

In addition to group control, each ballast can be controlled individually, with the possibility to create groups of ballasts via KNX. An integrated display and ETS DCA facilitate addressing when replacing a ballast and assist with assigning ballasts to groups. Error indicators for each ballast.

Compatible with emergency ballasts (DT1), colour ballasts (DT8), and energy monitoring (DT51 - part 252). The device is certified as a multi-master DALI-2 controller and compatible with DALI inputs. Compatible with KNX Secure.
Additional plug-in required
No
BAB-Tec
No
Bluetooth
No
Brand
ZENNIO
Broadcast
No
Casambi
No
Class
KNX DALI gateway
DALI
Yes
DALI-2
Yes
Division units
4.5 TE
DT6
No
DT8
Yes
Effects control
No
Emergency lighting function
No
ENOcean
No
free@home
No
Gira One
No
Group control
Yes
Hager KNXeasy
No
HCL
No
HSV
No
Individual control
No
Integrated controller
No
Integrated DALI power supply
No
Integrated logic
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
No
Local/manual operation
No
Manufacturer item number
ZDID64X2
Manufacturer type
ZDID64X2
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Mounting type
Series installation
Number of channels
2
Number of devices
64
RGB
No
RGBW
No
Scenes
No
Shelly
No
Siemens LOGO!
No
suitable for DALI-2 sensors
No
Theben LUXORliving
No
Thread
No
TW
No
Type of transmission
Cable
Web browser
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
XY
No
Zigbee
No
Manufacturer information
ZENNIO
Zennio Avance y Tecnología S.L.
C/ Río Jarama, 132. Nave P-8.11
45007 Toledo
ES

info@zennio.com
www.zennio.com/
