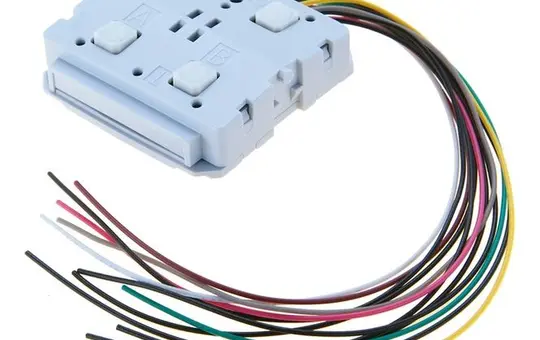

WEINZIERL 5385 KNX button interface 4-fold, potential-free

WEINZIERL 5385 KNX button interface | 4-fold, potential-free

Manufacturer: WEINZIERL
Article no.: 20009728
EAN: 4260262773852
Manufacturer item number: 5385
Manufacturer type: 5385
Weight: 0,001 kg
Available on request
54,98 €
incl. VAT + shipping
pcs
This push button interface does not contain rockers/mounting frames, but interface cables for connecting standard switches with potential-free contacts. This means you can use the same powerful application for other switches/contacts. The built-in switches enable quick testing of the configuration. Mechanical data: - Housing: plastic (POM) - Installation in standard 55 push button housing - Dimensions (LxWxH): 40x40x11.2 mm (insert) - Installation depth (bus terminal): 11 mm - Weight: approx. 15 g Power supply: - via KNX bus approx. 3 mA Control and display elements: - 4 buttons - 6 LEDs (green) - KNX programming button with LED (red) Connections: - Terminal for KNX bus (red/black) - Socket for ext. Switch/LEDs Outputs (LEDs): - Voltage: 3.3 V - Internal series resistor: 2 kOhm Inputs (binary inputs): - Voltage at input contacts: SELV - Cable length: 1 m - The signal must not exceed 100 ticks per second - Suitable for potential-free contacts
Brand
WEINZIERL
Class
Button interface
Color
white
Configuration
binary
Different bus system
-
Division units
-
Installation location
Wall
KNX
Yes
KNX-TP
Yes
Manufacturer item number
5385
Manufacturer type
5385
Mounting type
flush-mounted
Number of inputs
4
old Voltus number
1695995
Potential free
Yes
Type of transmission
Cable
Manufacturer information
WEINZIERL
Weinzierl Engineering GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
DE

info@weinzierl.de
weinzierl.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
