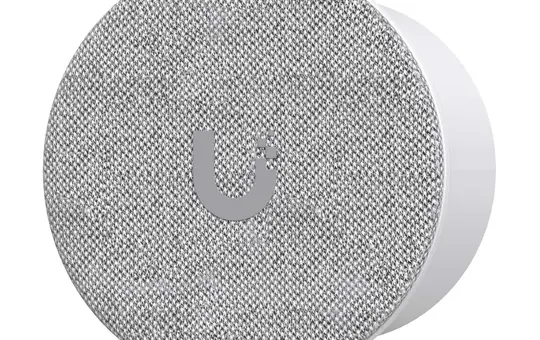

UBIQUITI UniFi UVC-AI-Theta-Audio Two-Way Audio Module USB-C

UBIQUITI UniFi UVC-AI-Theta-Audio Two-Way Audio Module | USB-C

Manufacturer: UNIFI
Article no.: 20086325
EAN: 0810010079732
Manufacturer item number: UVC-AI-Theta-Audio
Manufacturer type: UVC-AI-Theta-Audio
Weight: 0,065 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Two-way audio module connected to an AI Theta Hub.

  • Built-in microphone and speaker for two-way audio
  • Connected to an AI Theta Hub using the supplied cable
  • Includes flush-mount installation for flat ceiling or wall mounting


Technical Specifications

Mechanical

  • Dimensions: Ø61.5 x 39 mm (Ø2.4 x 1.5")
  • Weight: UVC-AI-Theta-Audio: 65 g (2.3 oz)

    UVC-AI-Theta-Audio flush mount: 22 g (0.8 oz)
  • Housing materials: Aluminium alloy, polycarbonate
  • Mounting material: Polycarbonate
  • Cable sheath housing dimensions: 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
  • Cable sheath housing material: PVC
  • Cable length: 1 m (3.3 ft)
  • Cable diameter: 3.3 mm (0.13")
  • Cable sheath material: Woven fabric
  • Cable weight: 18 g (0.63 oz)
  • Cable connector type: Theta proprietary
System

  • Max. power consumption: 4.5 W
  • Power requirements: USB Type C, 5 VDC, 0.9 A
  • Mounting: Ceiling mount
  • Operating temperature: -20 to 40 °C (-4 to 104 °F)
  • Certifications: FCC, IC, CE
Audio

  • Microphone: Yes (can be disabled in software)
  • Speaker: Yes
Software

  • Web application: UniFi Protect: version 2.7.18 and higher
  • App: UniFi Protect: version 1.11.0 and higher
Brand
UNIFI
Class
Door intercom system devices
Manufacturer item number
UVC-AI-Theta-Audio
Manufacturer type
UVC-AI-Theta-Audio
