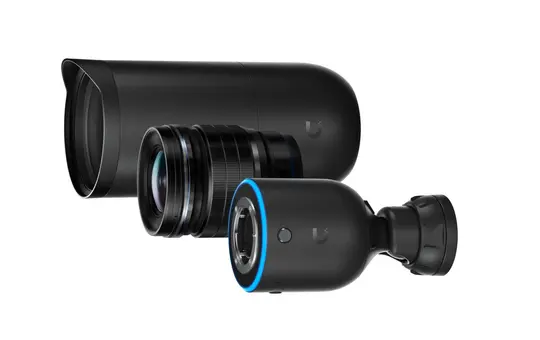

UBIQUITI UniFi UVC-AI-DSLR Video Camera | 8 MP, PoE+ | black

Manufacturer: UNIFI

Article no.: 20086317

EAN: 0810010079718

Manufacturer item number: UVC-AI-DSLR

Manufacturer type: UVC-AI-DSLR

Weight: 0,66 kg

In stock

Delivery: 4-8 business days

pcs

First-class optics – see the world in a new light with amazing image quality and low-light performance.

4K (8MP) video resolution

Highly sensitive image sensor

Includes M4/3 f/1.2 lens with large aperture

Advanced AI: person detection, licence plate reading, and more

Integrated 2-way audio*

Connection and power supply via PoE+

Weatherproof (for outdoor use)

Dimensions without mount: Ø80 x 89 mm (Ø3.1 x 3.5")
With mount: Ø80 x 153 mm (Ø3.1 x 6")
M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): Ø 68.2 x 87 mm
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): Ø 70 x 84.9 mm
Outdoor housing: Ø 91.6 x 196.3 mm
Weight without bayonet: 660 g
With bayonet: 820 g
M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): 390 g
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): 410 g (0.9 lb)
Outdoor housing: 510 g (1.1 lb)
Housing material: aluminium alloy
Mounting materials: wall mounting: aluminium alloy
Pole mounting: aluminium alloy
Weather protection: IPX5 (with outdoor housing)

Optics
Sensor: 4/3" 10MP CMOS sensor
Lens: M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR)
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD)
Field of view wide-angle (UVC-AI-DSLR): 52° (H), 39° (V), 65° (D)
Telephoto (UVC-AI-DSLR-LD): 21.6° (H), 16.2° (V), 27° (D)

Video
Video compression H.264
Resolution 3840 x 2160 (16:9)
Max frame rate 30 FPS
Image settings colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay

System
Processor quad-core Arm® Cortex®-A53-based chip
Network interface (1) GbE RJ45 port
Max power consumption 17.77 W (with lens on)
Power supply PoE+
Supported voltage range 37–57 V DC
Buttons: factory reset
Lens release button
Mounting: wall, pole mounting (included)
Tripod mounting
Operating temperature: -20 to 40 °C (-4 to 104 °F)
Operating humidity: 10 to 90 % (non-condensing)
Certifications: FCC, IC, CE

Audio
Microphone: yes (can be disabled via software; audio function is automatically disabled when the outdoor case is connected)
Speaker: yes (audio function is automatically disabled when the outdoor case is connected)

Software
Web application: UniFi Protect: version 2.2.2 and higher
Mobile app: UniFi Protect iOS™ and Android™: version 1.7.0 and higher

Brand: UNIFI
Class: Cameras
Colour: black
Installation technology: IP
Location: Outside | Inside
Manufacturer item number: UVC-AI-DSLR
Manufacturer type: UVC-AI-DSLR
Material: aluminum
Mounting type: Construction
Protection class (IP): IPX5
Resolution: 8 MP | 4K UHD
Thermal imaging: No
