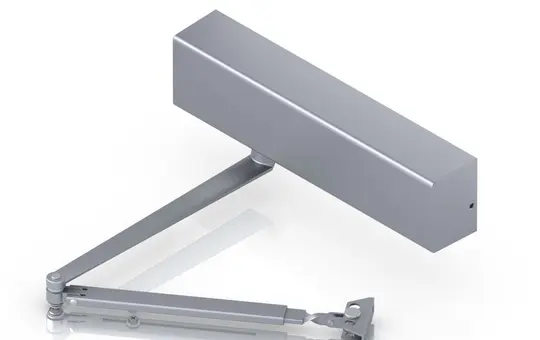

UBIQUITI UniFi UACC-DoorCloser Access Door Closer standard | silver

UBIQUITI UniFi UACC-DoorCloser Access Door Closer | standard | silver

Manufacturer: UNIFI
Article no.: 20086265
EAN: 0810177161653
Manufacturer item number: UACC-DoorCloser
Manufacturer type: UACC-DoorCloser
Weight: 3,3 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
A mechanical door closer that ensures controlled closing for safety and comfort.

Highlights:

  • Adjustable power size EN 2~6
  • Adjustable closing and latching speed
  • Adjustable opening speed (backcheck)
  • Surface mounting
  • Right/left mounting


Technical Data:

Mechanical

  • Dimensions: Door closer body: 256.5 x 60 x 48 mm (12.9 x 3.5 x 2.1 inches)
  • Weight: 3.3 kg
  • Housing material: Door closer body: aluminium alloy, carbon steel, hot-rolled steel
    Decorative cover: cold-rolled steel
  • Max. door opening angle: 180°
Hardware

  • Power size: EN2-6
  • Application area: Standard door mounting on the hinge side.
    Transom mounting on the hinge side. (This option is not covered by the certificate.)
    Parallel arm mounting on the hinge side. (Only sizes 3-5.)
  • Standard door/transom mounting (door width/weight): Power size 2: 850 mm / 40 kg
    Power size 3: 950 mm / 60 kg
    Power size 4: 1100 mm / 80 kg
    Power size 5: 1250 mm / 100 kg
    Power size 6: 1400 mm / 120 kg
  • Parallel arm mounting (door width / weight): Power size 3: 950 mm / 60 kg
    Power size 4: 1100 mm / 80 kg
    Power size 5: 1250 mm / 100 kg
  • Certifications: CE, EN 1154, EN 1634, AS 1530.4
