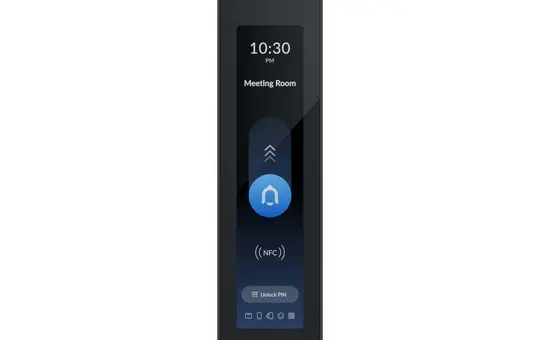

UBIQUITI UniFi UA-G2-Pro-Black Pro NFC Card Reader | 2nd Generation | black

Manufacturer: UNIFI

Article no.: 20086284

EAN: 0810084692349

Manufacturer item number: UA-G2-Pro-Black

Manufacturer type: UA-G2-Pro-Black

Weight: 0,136 kg

In stock

Delivery: 4-8 business days

pcs

NFC card reader and intercom system of the second generation.

Technical Specifications

Mechanical

Hardware

Network interface: (1) 10/100/1,000 MbE RJ45 port
Connectivity: BLE 4.2
NFC
Power method: PoE
Supported voltage range: 48V DC
Max. power consumption: 6W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensor: ToF sensor
Camera: 4000 x 3000, 12 MP, 30 FPS
Microphone: Yes
Speaker: (1) 4 Ohm, 1.5 W
LEDs: R/G/B/W
-Flash
Button: (1) Factory reset
NFC frequency: 13.56 MHz
NFC reading range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology: NFC tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature: -10 to 45 °C (14 to 113 °F)
Operating humidity: 5 to 90 % non-condensing
Certifications: CE, FCC, IC

Software

Manufacturer information

UNIFI
Ubiquiti International Holding B.V.
Ekkersrijt 3102
5692 CC Son En Breugel
NL

legal@ui.com
help.ui.com

Description

NFC card reader and intercom system of the second generation.

Technical Specifications

Mechanical

Hardware

Network interface: (1) 10/100/1,000 MbE RJ45 port
Connectivity: BLE 4.2
NFC
Power method: PoE
Supported voltage range: 48V DC
Max. power consumption: 6W
ESD/EMP protection: Air: ±15kV, contact: ±8kV
Sensor: ToF sensor
Camera: 4000 x 3000, 12 MP, 30 FPS
Microphone: Yes
Speaker: (1) 4 Ohm, 1.5 W
LEDs: R/G/B/W
-Flash
Button: (1) Factory reset
NFC frequency: 13.56 MHz
NFC reading range: < 30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology: NFC tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature: -10 to 45 °C (14 to 113 °F)
Operating humidity: 5 to 90 % non-condensing
Certifications: CE, FCC, IC
