TRIDONIC 28004492 MATTER-LED power supply 24 V | 150 W

Manufacturer: TRIDONIC

Article no.: 20070290

EAN: 9006210799674

Manufacturer item number: 28004492

Manufacturer type: LC 150/24V MTR SC PRE2 SP

Weight: 0,293 kg

Available on request

pcs

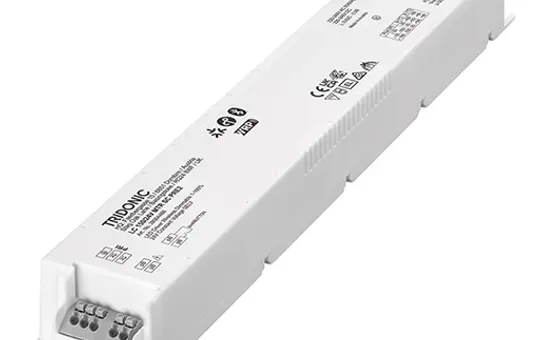

The dimmable 24 V constant voltage LED driver (150 W) is Matter-certified and communicates via an IPv6 Thread network; a Thread border router such as HomePod mini or Nest Hub is required. A freely configurable push-button input as well as wireless firmware updates are integrated. The driver is suitable for flexible 24 V LED strips and can be used as a luminaire built-in or independent driver with strain relief. It offers a dimming range of 1–100 % without an external dimmer, complies with EN 50172, and achieves up to 50,000 h service life, 5 years warranty, and security updates for five years. Compact design (325×43×30 mm), small cross-section, 45° plug-in terminals, and double output terminals facilitate installation. Compatible with Tridonic LLE-FLEX ADV/EXC (600–2500 lm/m). For third-party LED strips, the dimming function at low levels should be checked.

Active power measurement: No
Amazon Alexa: No
Apple HomeKit: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: TRIDONIC
Casambi: No
Class: Power supplies
DALI: No
Day/night function: No
Dimming: No
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Google Assistant: No
Hager KNXeasy: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: 28004492
Manufacturer type: LC 150/24V MTR SC PRE2 SP
Matter: Yes
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Ceiling drop
Number of outputs: 1
Output current in mA: 6250
Output power in W: 150
Rated voltage outputs: 24V DC
Samsung SmartThings: No
Shelly: No
Siemens LOGO!: No
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm
DE

BestellungDE@tridonic.com
www.tridonic.com/en/int
