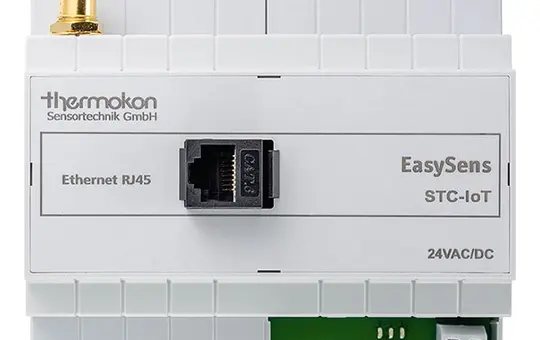

THERMOKON 669320 IoT EnOcean gateway 868 MHz, unidirectional

THERMOKON 669320 IoT EnOcean gateway | 868 MHz, unidirectional

Manufacturer: THERMOKON
Article no.: 20046025
Manufacturer item number: 669320
Manufacturer type: STC-IoT
Weight: 0,3 kg
Available on request
459,07 €
incl. VAT + shipping
pcs
Application/Type: Gateway Purpose: Interface translation Interface: EnOcean (868 MHz) Configuration: Web interface Network technology: TCP/IP Radio technology: EnOcean (IEC 14543-3-10) 868 MHz, 902 MHz, transmit power <10 mW Data transmission: unidirectional, receive channels, (Rx) Temperature range: 0-50°C Temperature ranges: 0-50°C Operating humidity range: max. 85% rH non-condensing Power supply: 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV Power consumption: typ. 3W (24V=), 5 VA (24 V ~) Housing: ABS Color: light gray Protection class: IP20, according to DIN EN 60529 Connection: removable plug-in terminal, max. 2.5 mm² Mounting: prepared for snap-on mounting on Standard mounting rail TS35 (35x7.5mm) according to DIN EN 60715 Scope of delivery: including external receiving/transmitting antenna (2.5m) with magnetic base Notes: magnetic antenna mount for external antenna is recommended to improve the radio range (see accessories), documentation locally via web browser interface
Brand
THERMOKON
Class
IoT gateways
Different bus system
-
Division units
6
ENOcean
Yes
Manufacturer item number
669320
Manufacturer type
STC-IoT
old Voltus number
1705402
Type of transmission
radio
Manufacturer information
THERMOKON
Thermokon Sensortechnik GmbH
Platanenweg 1
35756 Mittenaar-Offenbach
DE

email@thermokon.de
www.thermokon.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
