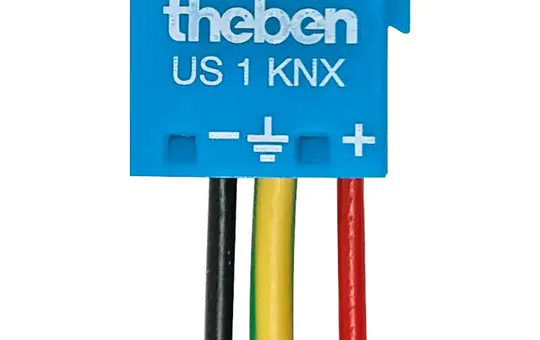

THEBEN US 1 KNX Surge Protector standard

THEBEN US 1 KNX Surge Protector | standard

Manufacturer: THEBEN
Article no.: 20046090
EAN: 4003468905708
Manufacturer item number: 9070848
Manufacturer type: US 1 KNX
Weight: 0,011 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
This surge arrester provides effective fine protection for sensitive components in KNX or LUXORliving systems. Its particular strength lies in the brilliantly simple installation: it is designed in the form of a standard KNX bus terminal and is simply plugged onto the bus line instead of a normal bus terminal. This allows it to be integrated into the distribution board without additional wiring effort or space requirements. The arrester protects the connected bus participants from transient overvoltages, which can occur, for example, due to switching operations or atmospheric discharges in the power grid, thereby increasing the operational reliability and longevity of the entire system.

Surge arrester US 1 KNX Rated voltage DC 0 ... 24 V, Maximum continuous voltage DC 45 V, Rated impulse discharge current (8/20) 5 kA, Lightning impulse current (10/350 µs) 1 kA, Rated load current 6 A, Protection level conductor/conductor 1200 V, Protection level conductor/earth 650 V, Protection level conductor/signal ground 750 V, Protection level signal ground/protective ground 500 V, Cut-off frequency 70 MHz, Mounting type other, Connection 1 terminal, Signalling on device none, Number of conductors (excluding earth) 2, Earthing via other, Width 12 mm, Protection rating (IP) IP20,
Brand
THEBEN
Class
Overvoltage protection
Configuration
1-pole
Dissipation capacity in kA
5
Manufacturer item number
9070848
Manufacturer type
US 1 KNX
Mounting type
flush-mounted
Remote signaling
No
Type
2

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Declaration of Conformity
Data sheet
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/
