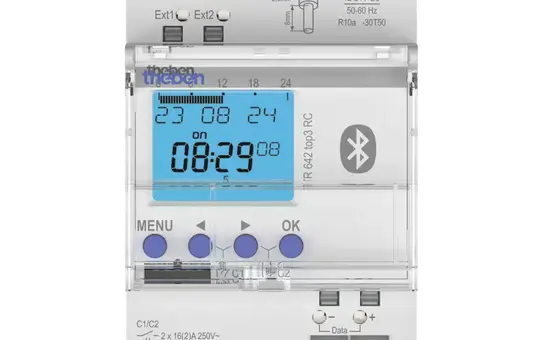

THEBEN TR 642 top3 BLE 12-24V RC Digital Timer Switch | 2 channels, with annual and astro program, app

Manufacturer: THEBEN

Article no.: 20056421

EAN: 4003468640135

Manufacturer item number: 6424330

Manufacturer type: TR 642 top3 BLE 12-24V RC

Weight: 0,201 kg

Available on request

pcs

This digital 2-channel timer switch is designed for flexible use in 12-24 volt systems and is mounted on a DIN rail. It combines a yearly and astro programme and can be conveniently programmed via the integrated BLE module using an app. Time synchronisation via an external DCF or GNSS/GPS antenna is possible. With 800 memory slots and a 10-year power reserve, it is highly reliable. Extensive functions such as impulse, cycle, holiday, and random programmes, as well as two external inputs, offer maximum flexibility. The zero-cross switching and DuoFix spring terminal clamps ensure safe and easy installation.

The digital timer switch with yearly and astro programme offers comprehensive functions for precise time control. It allows programming via an app through the integrated BLE module and has 2 channels as well as 800 memory slots. Its astronomical switching function automatically calculates sunrise and sunset times for the entire year and supports three astro ranges: sunset, twilight, and darkness. It is pre-programmed for Earth Hour until 2044 and can be synchronised via an external DCF or GNSS antenna. The timer has 2 external inputs for push buttons and switches, supports a variety of programmes (basic weekly programme, 14 weekly programmes, fixed and variable public holidays) and offers extensive functions such as impulse and cycle programmes. It features zero-cross switching for gentle switching, programme simulation on the display and PC, as well as a graphical yearly overview. Additional functions include its own public holiday database.

Brand: THEBEN
Class: timers
Division units: 3 TE
Manufacturer item number: 6424330
Manufacturer type: TR 642 top3 BLE 12-24V RC

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: THEBEN
Class: timers
Division units: 3 TE
Manufacturer item number: 6424330
Manufacturer type: TR 642 top3 BLE 12-24V RC

Documents
