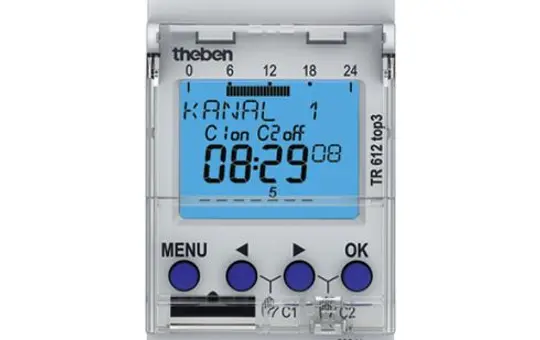

THEBEN TR 612 top3 Digital Weekly Timer Switch 2 channels

THEBEN TR 612 top3 Digital Weekly Timer Switch | 2 channels

Manufacturer: THEBEN
Article no.: 20046441
EAN: 4003468610305
Manufacturer item number: 6120130
Manufacturer type: TR 612 top3
Weight: 0,196 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs


With two independent channels, this digital timer switch for DIN rail offers flexible control options. It features a weekly programme and is designed for high LED loads of 600 watts per channel. Programming can be done modernly and securely via the app using the optional Bluetooth OBELISK top3, ensuring maximum tamper protection. With only 0.4 watts standby power, the timer is very energy-efficient and 100% compatible with top2 systems. A power reserve, automatic summer/winter time change, and DuoFix push-in terminals are part of the professional standard equipment.

Digital timer switch for DIN rail, 2 channels, weekly programme, width 2 modules, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum tamper protection, timer programmes can only be transferred from the app to the timer when the Bluetooth OBELISK top3 is plugged into the timer, 100% compatible with top2, 600 watts LED load, 800 amperes/200 microseconds inrush current, 0.4 watts standby power, DuoFix push-in terminals, power reserve and programmed summer/winter time change, OBELISK interface for PC programming.
Annual program
No
Astro program
No
Brand
THEBEN
Class
timers
Configuration
digital
Daily program
No
Division units
2 TE
Manufacturer item number
6120130
Manufacturer type
TR 612 top3
Weekly program
Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/
