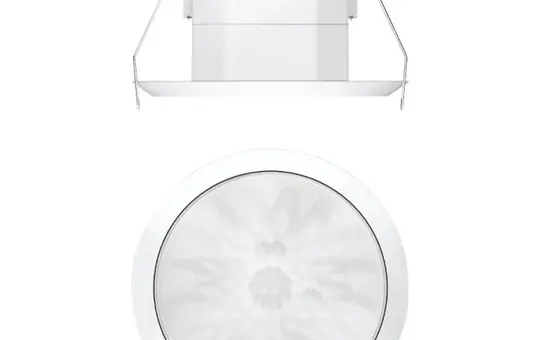

THEBEN theRonda S360 KNX FLAT DE WH KNX ceiling presence detector DE, round detection area | pure white | 50 m²

THEBEN theRonda S360 KNX FLAT DE WH KNX ceiling presence detector | DE, round detection area | pure white | 50 m²

Manufacturer: THEBEN
Article no.: 20045977
EAN: 7612748006416
Manufacturer item number: 2089560
Manufacturer type: theRonda S360 KNX FLAT DE WH
Weight: 0,122 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
As a versatile solution for KNX building automation, this white presence detector is designed for ceiling installation. It detects seated persons at 4 metres and walking persons at 8 metres. The device controls two light channels and two individually configurable presence channels. It enables constant light control with orientation light or dimmable lighting in switching mode. A self-learning follow-up time, short-term presence, and a teach-in function optimise operation. The brightness setpoint is flexibly adjustable. Thanks to protection class IP54 and remote control capability, it is robust and comfortable to use.

Presence detector theRondaFlat DE WH Bus system KNX, Other bus systems none, Version presence detector, Mounting type flush-mounted, Material plastic, Material quality thermoplastic, Surface protection untreated, Surface finish matt, Colour white, RAL number (similar) 9010, With bus coupling, Staircase monitoring, Adjustable response brightness, Teach function for response brightness, Self-learning switch-off delay, Optimal mounting height 3 m, Max. range to one side 4 m, Max. frontal range 4 m, Detection field diameter on floor 8 m, Detection angle horizontal 0 ... 360°, Number of digital inputs 0, Number of channels 3, Min. switch-on duration 30 s, Max. switch-on duration 60 min,
Air pressure sensor
No
BAB-Tec
No
Bluetooth
No
Brand
THEBEN
Brightness sensor
No
Casambi
No
Class
Presence detector
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
4
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
2089560
Manufacturer type
theRonda S360 KNX FLAT DE WH
Manufacturer's colour
pure white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Protection class (IP)
IP40
Reach laterally in m
4
Remote controllable
Yes
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
