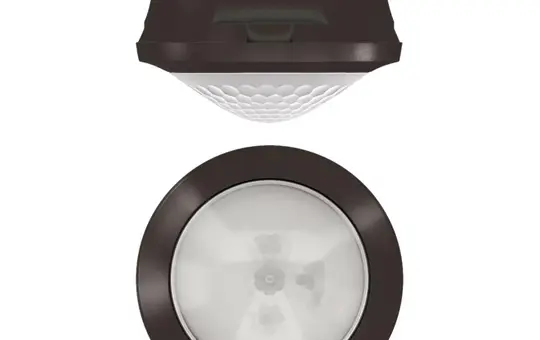

THEBEN theRonda S360 KNX AP BK KNX ceiling presence detector AP, round detection area | black | 50 m²

THEBEN theRonda S360 KNX AP BK KNX ceiling presence detector | AP, round detection area | black | 50 m²

Manufacturer: THEBEN
Article no.: 20045981
EAN: 4003468200575
Manufacturer item number: 2089552
Manufacturer type: theRonda S360 KNX AP BK
Weight: 0,276 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
This black KNX presence detector for surface-mounted ceiling installation blends elegantly into modern room concepts. It detects seated persons at 4 metres and walking persons at 8 metres. Two light channels and two individually configurable presence channels enable flexible control of lighting and HVAC. The device supports constant light control with orientation lighting as well as dimmable lighting in switching mode. A self-learning run-on time, short-term presence, and a teach-in function ensure efficiency and comfort. The detector is remote-controllable and, thanks to protection class IP54, also suitable for more demanding environments.

Presence detector surface-mounted, ws theRondaS360KNXAPBK Bus system KNX, type presence detector, mounting type surface-mounted, material plastic, material quality thermoplastic, surface protection untreated, surface finish matt, colour black, RAL number (similar) 9005, with bus coupling, staircase monitoring, adjustable response brightness, teach function for response brightness, self-learning switch-off delay, optimal mounting height 3 m, max. range to one side 4 m, max. range frontal 4 m, detection field diameter on floor 8 m, horizontal detection angle 0 ... 360°, number of digital inputs 0, number of channels 3, min. switch-on duration 30 s, max. switch-on duration 60 min,
Air pressure sensor
No
BAB-Tec
No
Bluetooth
No
Brand
THEBEN
Brightness sensor
No
Casambi
No
Class
Presence detector
Colour
black
Crawl protection
Yes
DALI
No
DALI-2
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
4
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
2089552
Manufacturer type
theRonda S360 KNX AP BK
Manufacturer's colour
black
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Protection class (IP)
IP40
Reach laterally in m
4
Remote controllable
Yes
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
