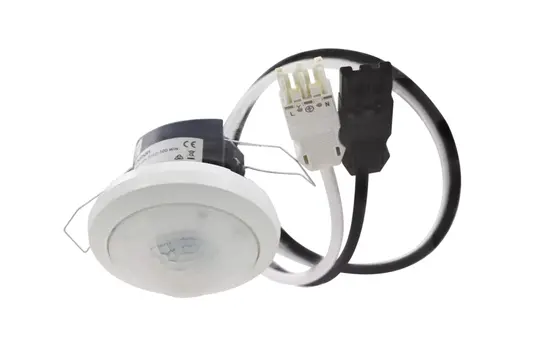

This ceiling-mounted presence detector has been designed for time-saving and error-free installation and comes with a 0.9 m long cable and WAGO WINSTA connectors. It automatically controls a lighting circuit depending on presence and brightness, covering a large detection area of 24 metres. Operation can be set to full or semi-automatic. Features include a teach-in function, a staircase lighting function, and a connection for manual push-buttons or switches with automatic detection. Sensitivity is adjustable, and for maximum comfort, all parameters can be conveniently set via remote control.

The presence detector (PIR) with pre-assembled cable and WAGO WINSTA Midi connectors (cable length 0.9 metres) offers a circular detection area of up to Ø 24 m (452 m²). It automatically controls lighting based on presence and brightness and is suitable for fluorescent lamps, halogen, incandescent lamps, and LEDs. The detector has a channel for light control (230 V relay) and allows adjustment of the brightness switching threshold as well as a teach-in function. A short-time presence function reduces the follow-up time for brief presence. Additional features include an impulse function for staircase light timers, the option to restrict the detection area using clips, and adjustable sensitivity. The detector is factory preset and ready for immediate use, and a test mode is available to check the function and detection area.
Acoustic sensor
No
Area
Inside
Brand
THEBEN
Brightness sensor
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection area
circular
Integrated constant light control
No
LED night light
No
Manufacturer item number
2080015
Manufacturer type
theRonda P360-100 WIN
Manufacturer's colour
white
Material
Plastic
Mounting type
flush-mounted
Protection class (IP)
IP40
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
