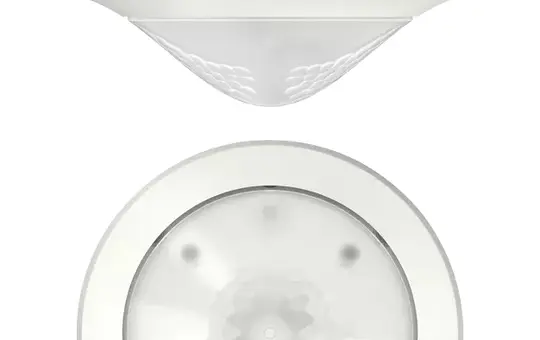

THEBEN thePassa P360 Slave UP WH Passive Infrared Presence Detector thePassa 360°, ceiling mounting UP | white

THEBEN thePassa P360 Slave UP WH Passive Infrared Presence Detector thePassa | 360°, ceiling mounting UP | white

Manufacturer: THEBEN
Article no.: 20056499
EAN: 7612748006539
Manufacturer item number: 2010330
Manufacturer type: thePassa P360 Slave UP WH
Weight: 0,225 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
The presence detector for flush-mounted ceiling installation flexibly expands the detection range of existing systems and is designed for easy installation due to its compact design.

  • Slave function for extension: Expands the detection range of a master presence detector by transmitting motion information.
  • Rectangular detection area: 360° coverage with 30 x 4.5 m, switchable to 15 x 4.5 m, ideal for corridors and storage aisles.
  • Mounting flexibility: Flush-mounted ceiling installation in flush-mounted boxes or surface-mounted on the ceiling with an optional surface-mounted frame possible.
  • Sensitivity and detection zones: Adjustable sensitivity and two individually switchable detection zones to adapt to the application location.
  • System expandability: Master/slave or master/master wiring allows connection of up to 10 units.
  • Protection rating IP54: Suitable for more demanding environments with protection against dust and splashing water.
  • Commissioning and test operation: Factory pre-set for immediate operation and test mode to check function and detection area.


This slave presence detector for flush-mounted ceiling installation serves to easily extend the detection range of a master device. It is specifically designed for corridors and features a detection area of 30 x 4.5 metres, which can be switched to 15 x 4.5 metres. Installation is possible at heights of up to 6 metres. The slave detector detects movements and forwards this information to the master, which then performs the switching action. The sensitivity of the slave is adjustable and can be configured via remote control. With protection rating IP54, it is also suitable for more demanding environments.

The passive infrared presence detector for ceiling installation in flush-mounted boxes offers a rectangular detection area with 360° coverage of 30 x 4.5 m (135 m²) at a mounting height of 3 m, ideal for corridors and storage aisles. It features two individually switchable detection zones and is designed as a slave version for the thePassa master presence detector. The detector is ready for operation immediately due to factory pre-setting and offers a test mode to check function and detection area. The detection area can be expanded to up to 10 units via master/slave or master/master wiring. It can be installed either flush-mounted in the ceiling or surface-mounted with a surface-mounted frame. Optional user remote control theSenda S and universal remote control theSenda B are available.
Acoustic sensor
No
Area
Inside
Brand
THEBEN
Brightness sensor
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection area
rectangular
Detection type/sensor type
Passive infrared
Integrated constant light control
No
LED night light
No
Manufacturer item number
2010330
Manufacturer type
thePassa P360 Slave UP WH
Manufacturer's colour
white
Material
Plastic
Mounting type
flush-mounted
Protection class (IP)
IP54
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
