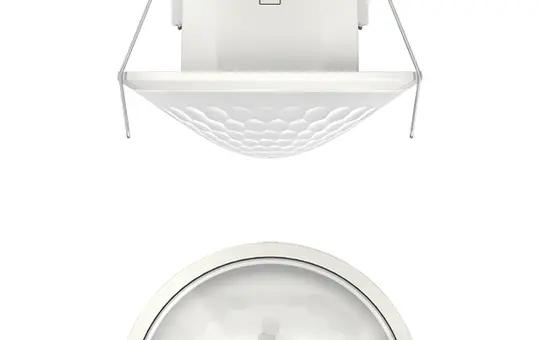

THEBEN theMova S360-100 DE WH theMova Passive Infrared Motion Detector 360°, ceiling mounting, recessed | white

THEBEN theMova S360-100 DE WH theMova Passive Infrared Motion Detector | 360°, ceiling mounting, recessed | white

Manufacturer: THEBEN
Article no.: 20056468
EAN: 7612748004986
Manufacturer item number: 1030560
Manufacturer type: theMova S360-100 DE WH
Weight: 0,155 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
The passive infrared motion detector for ceiling mounting impresses with a well-thought-out design that enables automatic lighting control with flexible adaptation to different environments.

  • 360° detection range: Ceiling mounting with a circular detection range of 360° and a diameter of up to 8 m at a mounting height of 3 m, ideal for covering up to 50 m².
  • Automatic lighting control: Controls lighting based on motion detection and brightness with an integrated daylight sensor mode.
  • Pre-set operating parameters: Factory-preset hold time of 10 minutes and brightness switching threshold of 300 lux for quick commissioning.
  • Flexible adjustment options: Sensitivity, hold time, and brightness switching threshold are adjustable; changes are made via an optional remote control.
  • Impulse function for staircase lighting: Supports staircase lighting timers through a special impulse function.
  • Compatibility with various lamp types: Suitable for a wide range of light sources for flexible use in offices, corridors, and ancillary rooms.


This motion detector in white is designed for discreet ceiling installation. It provides automatic, brightness-dependent lighting control and is ideal for offices, corridors, and ancillary rooms. The circular detection area covers a diameter of up to 8 metres. Sensitivity and switch-off delay are adjustable to ensure demand-oriented operation and energy savings. The device is delivered with preset values, allowing quick and uncomplicated commissioning. For even more convenient adjustment, all parameters can also be set via remote control.

The passive infrared motion detector for ceiling mounting offers a circular detection range of 360° with a diameter of 8 m and covers 50 m² at a mounting height of 3 m. It automatically controls lighting based on motion and brightness and is suitable for a variety of lamp types. The daylight sensor mode allows lighting adjustment depending on brightness and can be switched via an app. The detector operates fully automatically and can be used immediately thanks to factory pre-settings, with the brightness switching threshold set to 300 lux and the hold time to 10 minutes. Adjustments to brightness switching threshold and hold time are possible, and the impulse function is suitable for staircase lighting timers. Optional remote controls are required to change the settings.
Acoustic sensor
No
Area
Inside
Brand
THEBEN
Brightness sensor
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
Integrated constant light control
No
LED night light
No
Manufacturer item number
1030560
Manufacturer type
theMova S360-100 DE WH
Manufacturer's colour
white
Material
Plastic
Mounting type
flush-mounted
Protection class (IP)
IP40
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
