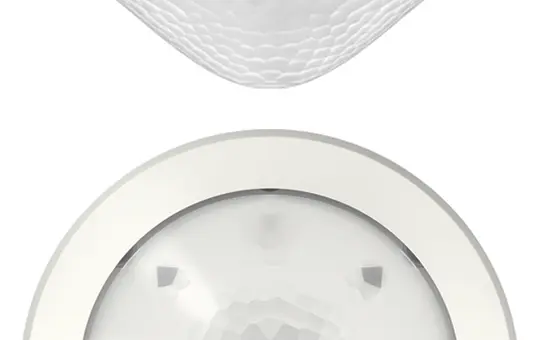

THEBEN theMova P360-100 UP WH PIR motion detector 360°, ceiling mounting, flush-mounted | white

THEBEN theMova P360-100 UP WH PIR motion detector | 360°, ceiling mounting, flush-mounted | white

Manufacturer: THEBEN
Article no.: 20056470
EAN: 7612748005105
Manufacturer item number: 1030600
Manufacturer type: theMova P360-100 UP WH
Weight: 0,245 kg
Available on request
Electrical appliance take-back
pcs
With its large, round detection range of up to 24 metres, this motion detector is ideal for monitoring extensive areas. The white device is designed for discreet flush-mounted ceiling installation and controls a lighting circuit fully automatically depending on movement and ambient brightness. The integrated mixed light measurement ensures precise operation. To optimally adapt the operation to the local conditions, both the switch-off delay and sensitivity are flexibly adjustable. A particular advantage is the option for remote parameterisation, allowing convenient configuration and subsequent adjustment of the settings [1.1].

The passive infrared motion detector for flush ceiling mounting offers a 360° round detection range with a diameter of 24 m, corresponding to an area of 452 m² at a mounting height of 3 m. It automatically controls lighting based on movement and brightness and is suitable for fluorescent, halogen, incandescent lamps as well as LEDs thanks to mixed light measurement. The detector operates in fully automatic mode, and the brightness switching value and delay time are adjustable. Cover clips allow restriction of the detection range. For installation, the detector can be mounted in a flush-mounted box or, optionally with a surface-mounted frame, also as a ceiling surface installation. The device is intended for indoor use and offers a protection rating of IP 54. The remote controls theSenda S, theSenda B, and theSenda P are optionally available for configuration.
Acoustic sensor
No
Area
Inside
Brand
THEBEN
Brightness sensor
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
Integrated constant light control
No
LED night light
No
Manufacturer item number
1030600
Manufacturer type
theMova P360-100 UP WH
Manufacturer's colour
white
Material
Plastic
Mounting type
flush-mounted
Protection class (IP)
IP40
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
