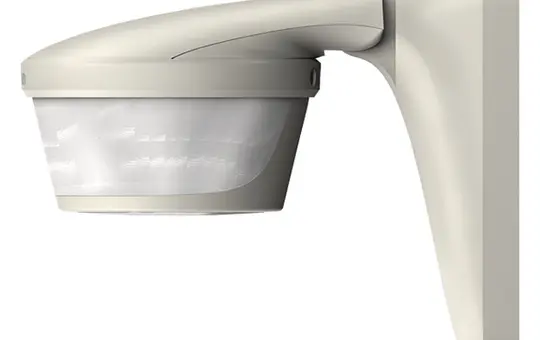

THEBEN theLuxa P300 KNX WH KNX motion detector | white

Manufacturer: THEBEN

Article no.: 20011060

EAN: 4003468100370

Manufacturer item number: 1019610

Manufacturer type: theLuxa P300 KNX WH

Weight: 0,24 kg

In stock

Delivery: 2-3 business days

123,84 €

incl. VAT + shipping

pcs

Motion detector ws theLuxa P300 KNX WH KNX bus system, motion detector design, surface-mounted installation, material plastic, material grade thermoplastic, surface protection other, surface finish matt, color white, RAL number (similar) 9010, with bus connection, creep-by protection/rear field monitoring, staircase monitoring, adjustable response brightness, teach function for response brightness, optimal mounting height 2.5 m, max. range to one side 16 m, max. range frontally 16 m, detection field diameter on floor 32 m, horizontal detection angle 0 ... 300 °, number of digital inputs 0, number of channels 2, min. duty cycle 1 s, max. duty cycle 20 min,

Area: Outside
Brand: THEBEN
Brightness sensor: Yes
Class: Motion detector
Color: white
Crawl protection: Yes
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 16.00
Horizontal detection angle: 300
Installation height in m: 2.50
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 1019610
Manufacturer type: theLuxa P300 KNX WH
Mounting type: Surface-mounted
Number of areas: 3
old Voltus number: 1609975
Protection class (IP): IP55
Reach laterally in m: 16.00
Remote controllable: Yes
suitable for ceiling mounting: Yes
suitable for wall mounting: Yes
Supply voltage: BUS voltage
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Area: Outside
Brand: THEBEN
Brightness sensor: Yes
Class: Motion detector
Color: white
Crawl protection: Yes
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 16.00
Horizontal detection angle: 300
Installation height in m: 2.50
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 1019610
Manufacturer type: theLuxa P300 KNX WH
Mounting type: Surface-mounted
Number of areas: 3
old Voltus number: 1609975
Protection class (IP): IP55
Reach laterally in m: 16.00
Remote controllable: Yes
suitable for ceiling mounting: Yes
suitable for wall mounting: Yes
Supply voltage: BUS voltage
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable
