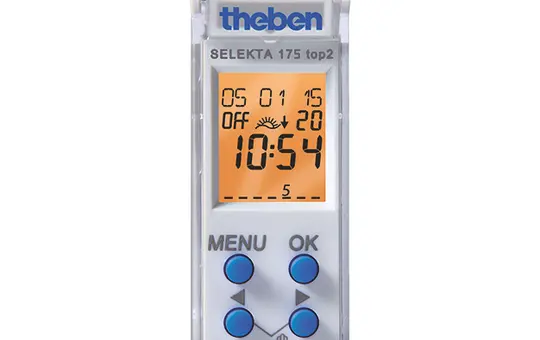

THEBEN SELEKTA 175 top2 Astro time switch | 1 channel, external input

Manufacturer: THEBEN

Article no.: 20056479

EAN: 4003468100424

Manufacturer item number: 1750100

Manufacturer type: SELEKTA 175 top2

Weight: 0,138 kg

In stock

Delivery: 2-3 business days

pcs

This digital astro time switch is extremely compact and requires minimal space on the DIN rail with only one modular width (1 MU). Despite its small size, it offers full functionality with an astronomical programme that switches at sunrise and sunset, as well as daily and weekly programmes. Operation is simplified by a text-oriented guide on the display, and the location can be selected from a database of city names. A power reserve, automatic summer/winter time change, and practical DuoFix push-in terminals make it a fully featured and space-saving solution.

The astro time switch with weekly programme features one channel and one external input, ideal for precise control. It includes 56 memory slots and automatically calculates sunrise and sunset times for the entire year, with an offset for fine adjustment. Operation is via a text-oriented display, and programmes can be created on a PC using an OBELISK top2 memory card. With a 10-year power reserve thanks to a lithium battery, it supports programmable ON-OFF times, switch preselection, continuous switching, and an integrated operating hour counter. Additional functions include a reset option, a service function for maintenance monitoring, a holiday programme, PIN coding, and automatic summer/winter time switching. The DuoFix spring push-in terminals ensure easy and secure wiring.

Annual program: No
Astro program: Yes
Brand: THEBEN
Class: timers
Daily program: No
Division units: 1 TE
Manufacturer item number: 1750100
Manufacturer type: SELEKTA 175 top2
Weekly program: Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet

Declaration of Conformity

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Annual program: No
Astro program: Yes
Brand: THEBEN
Class: timers
Daily program: No
Division units: 1 TE
Manufacturer item number: 1750100
Manufacturer type: SELEKTA 175 top2
Weekly program: Yes
