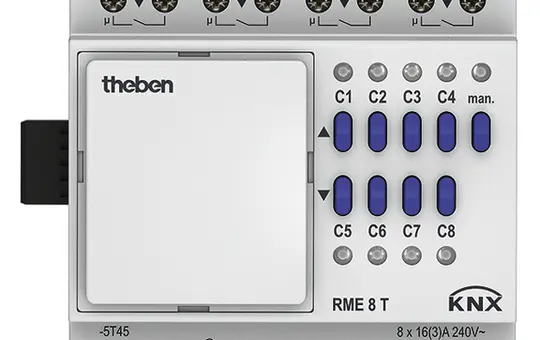

THEBEN RME 8 T KNX Universal Actuator MIX | 8-fold, expansion module

Manufacturer: THEBEN

Article no.: 20011063

EAN: 4003468490822

Manufacturer item number: 4930205

Manufacturer type: RME 8 T KNX

Weight: 0,339 kg

In stock

Delivery: 4-8 business days

pcs

As an extension device of the MIX2 series, this KNX combination actuator serves the flexible scaling of switching and shutter applications. The 4 TE wide modular device provides relay outputs for 8 switching channels or 4 shutter channels. It can be combined with other MIX extension devices. Each channel features an LED switching status indicator and a manual switch with status display. The actuator supports various functions such as on/off delay, staircase lighting with pre-warning, logical links, and scenes. A feedback object for each channel and participation in central commands offer maximum control.

Switch actuator/shutter actuator MIX2, Extension module RME 8 T KNX bus system KNX, Mounting type REG, Width in modular units 4, Local/manual operation, With LED display, Number of digital inputs 0, Max. switching power LED 600W, Output power 3680W, Max. number of switching outputs 8, Max. switching current 16A, Various phases connectable, Bus module removable, Modular extension option, Protection rating (IP) IP20.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: THEBEN
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 4930205
Manufacturer type: RME 8 T KNX
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of blind outputs: 4
Number of outputs: 8
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 2.5
suitable for C load: No
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual

Data Sheet

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
