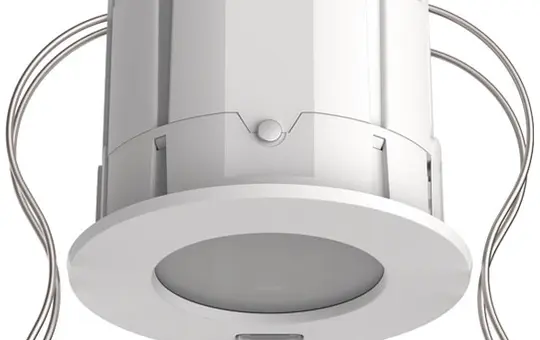

THEBEN PlanoSpot 360 KNX DE WH KNX presence detector white

THEBEN PlanoSpot 360 KNX DE WH KNX presence detector | white

Manufacturer: THEBEN
Article no.: 20011135
EAN: 7612748005839
Manufacturer item number: 2039100
Manufacturer type: PlanoSpot 360 KNX DE WH
Weight: 0,154 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
With its particularly flat design and white frame, this passive infrared presence detector for ceiling installation blends discreetly into modern ceilings. It is a powerful component for KNX systems and controls three independent light channels, optionally in switching mode or as constant light control. Additionally, two presence channels are available, with adjustable on and off delay times. The square 360° detection area ensures seamless monitoring. Features such as a self-learning switch-off delay and a standby functionality increase comfort and efficiency. The bus coupler is already integrated.

Presence detector for ceiling mounting PlanoSpot360KNXDE WH Bus system KNX, version presence detector, installation type flush-mounted, material plastic, material quality thermoplastic, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, with bus coupling, auxiliary input, staircase monitoring, adjustable response brightness, teach function for response brightness, self-learning switch-off delay, optimal mounting height 3 m, max. range to one side 4 m, max. frontal range 4 m, detection field diameter on floor 8 m, horizontal detection angle 0 ... 360°, number of digital inputs 0, number of channels 5, min. switch-on duration 30 s, max. switch-on duration 60 min,
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
THEBEN
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
4
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation height in m
3
Installation location
Ceiling
Integrated constant light control
Yes
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
2039100
Manufacturer type
PlanoSpot 360 KNX DE WH
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
cavity wall
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
4
Remote controllable
Yes
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
