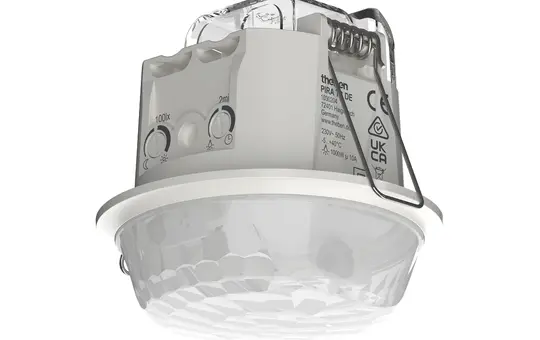

THEBEN PIRA TC DE Ceiling Motion Detector PIRA 1 channel light, DE | white

THEBEN PIRA TC DE Ceiling Motion Detector PIRA | 1 channel light, DE | white

Manufacturer: THEBEN
Article no.: 20073645
EAN: 4003468102176
Manufacturer item number: 1030204
Manufacturer type: PIRA TC DE
Weight: 0,1 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
This corridor sensor is specially designed for ceiling installation in long and narrow indoor areas such as hallways. Its rectangular 360° detection range is optimised for a mounting height of 2.5 metres and covers an area of 25 x 3 metres. It controls a lighting circuit (230 V relay) and switches the lighting fully automatically depending on movement and ambient brightness. The brightness threshold and hold time can be easily adjusted via potentiometers directly on the device. A factory preset (100 lux, 2 minutes) ensures that the sensor is ready for use immediately after installation, significantly simplifying commissioning.
Air pressure sensor
No
Area
Inside
Brand
THEBEN
Brightness sensor
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection area diameter in m
25
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
12
Horizontal detection angle
360
Humidity sensor
No
Installation height in m
2.5
Manufacturer item number
1030204
Manufacturer type
PIRA TC DE
Material
Plastic
Mounting type
Installation
Protection class (IP)
IP21
Reach laterally in m
1.5
Remote controllable
No
similar to RAL
9010
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
VOC sensor
No
