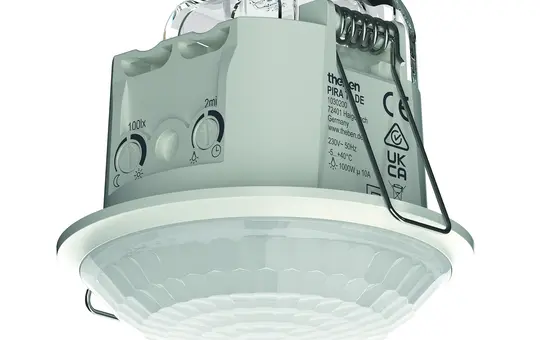

THEBEN PIRA T8 DE Ceiling Presence Detector PIRA 1 channel light, DE | white

THEBEN PIRA T8 DE Ceiling Presence Detector PIRA | 1 channel light, DE | white

Manufacturer: THEBEN
Article no.: 20073641
EAN: 4003468102138
Manufacturer item number: 1030200
Manufacturer type: PIRA T8 DE
Weight: 0,095 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
This motion detector (PIR) is designed for discreet ceiling installation indoors and provides fully automatic lighting control.

Its round 360° detection range covers a diameter of 8 metres at a mounting height of 2.5 metres for lateral movement. It controls one lighting circuit (230 V relay) and automatically switches the lighting depending on movement and ambient brightness. The mixed light measurement ensures reliable operation.

The brightness switching threshold and the hold time can be easily adjusted via a potentiometer. Thanks to a factory preset (100 lux, 2 min.), the detector is ready for operation immediately after installation, significantly speeding up commissioning.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
Brand
THEBEN
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection area diameter in m
8
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
4
Horizontal detection angle
360
Humidity sensor
No
Installation height in m
2.5
LED night light
No
Manufacturer item number
1030200
Manufacturer type
PIRA T8 DE
Material
Plastic
Mounting type
Installation
Protection class (IP)
IP21
Reach laterally in m
4
Remote controllable
No
similar to RAL
9010
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
