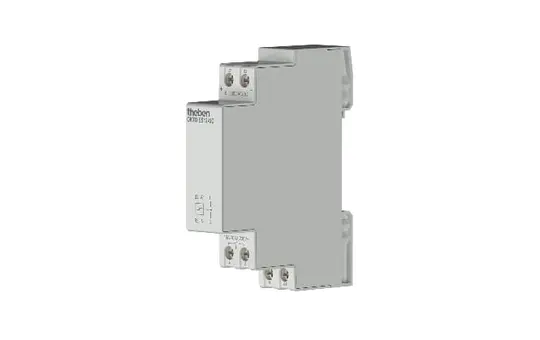

THEBEN OKTO ES12-UC Impulse Relay Switch 1-fold, electronic, universal control voltage

THEBEN OKTO ES12-UC Impulse Relay Switch | 1-fold, electronic, universal control voltage

Manufacturer: THEBEN
Article no.: 20046098
EAN: 4003468310014
Manufacturer item number: 3120131
Manufacturer type: OKTO ES12-UC
Weight: 0,101 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
As a highly flexible electronic impulse switch, this device features a potential-free multi-voltage input that can be controlled with voltages from 8 V to 230 V. This allows comfortable light control via a wide variety of pushbuttons. Operation is particularly quiet. Automatic 3-/4-wire detection and support for a high glow lamp load of up to 100 mA offer maximum flexibility during installation. The lamp-friendly zero-cross switching circuit enables a high LED switching capacity of 600 watts. With a standby consumption of only 0.3 watts, it is also extremely energy-efficient.

Impulse switch 1 channel/contact S OKTO ES12-UC Function electronic switch, mounting type DIN rail, width in modular units 1, installation depth 60 mm, number of contacts as normally closed 1, number of contacts as normally open 0, number of contacts as changeover 0, control voltage 1 8 ... 230 V, control voltage type 1 AC/DC, frequency of control voltage 1 50 ... 60 Hz, control voltage 2 8 ... 230 V, control voltage type 2 AC/DC, frequency of control voltage 2 50 ... 60 Hz, rated switching current 16 A, supply voltage 230 ... 230 V, supply voltage type AC, max. incandescent lamp load 2600 W, max. fluorescent lamp load 2600 VA, max. fluorescent lamp load (duo circuit) 2600 VA, max. fluorescent lamp load (parallel compensated) 1300 VA, max. switching current (cos phi = 0.6) 10 A,
Brand
THEBEN
Class
relay
Division units
1 TE
Manufacturer item number
3120131
Manufacturer type
OKTO ES12-UC
Switch contact
1 closer

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet
Declaration of Conformity
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
