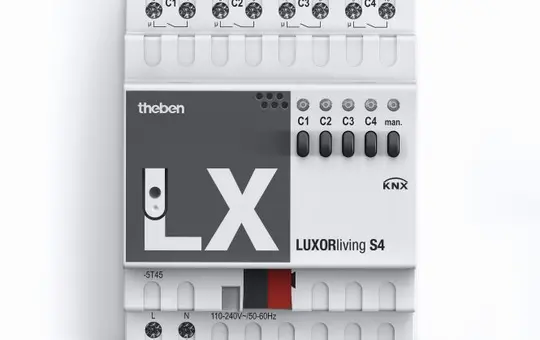

THEBEN LUXORliving S4 Switching Actuator | 4-fold

Manufacturer: THEBEN

Article no.: 20011291

EAN: 4003468480021

Manufacturer item number: 4800420

Manufacturer type: LUXORliving S4

Weight: 0,273 kg

In stock

Delivery: 4-8 business days

pcs

This 4-gang switching actuator for the DIN rail is a core component of the LUXORliving smart home system. It features four relay outputs for controlling loads. Each channel has an LED switching status indicator and a manual switch for operation even without bus voltage. The contact type (normally open/normally closed) is configurable. The actuator supports switching functions such as On/Off and a staircase lighting function with warning. A feedback object is available for each channel. In addition, central commands such as permanent On and central switching with and without priority can be processed, enabling flexible and secure control.

Smart Home System 4 channels LUXORliving S4 bus system KNX, other bus systems LUXORliving, mounting type REG, width in modular units 4, local/manual operation, with LED indicator, number of digital inputs 0, max. switching capacity 2000 W, max. switching capacity LED 600 W, output power 3680 W, max. number of switching outputs 4, max. switching current 16 A, rated current 16 A, rated operating voltage 110 ... 230 V, various phases connectable, with bus coupling, protection rating (IP) IP20.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: No
Blinds: No
Bluetooth: No
Brand: THEBEN
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 4800420
Manufacturer type: LUXORliving S4
Matter: No
max. switching current in A: 16
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
suitable for C load: No
Theben LUXORliving: Yes
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/
