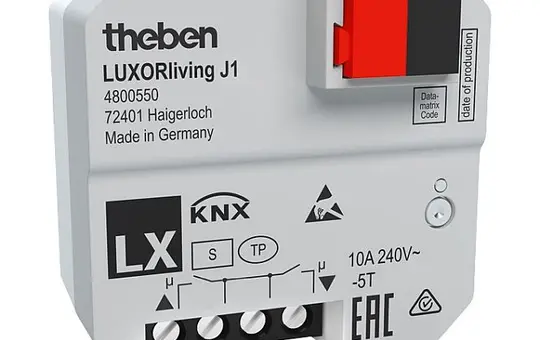

THEBEN LUXORliving J1 Shutter Actuator UP | 1-fold

Manufacturer: THEBEN

Article no.: 20011391

EAN: 4003468480199

Manufacturer item number: 4800550

Manufacturer type: LUXORliving J1

Weight: 0,042 kg

Available on request

pcs

This single-channel blind actuator for flush mounting seamlessly integrates sunshade control into the LUXORliving smart home system. It is suitable for controlling drives for blinds, roller shutters, sun and privacy protection devices, as well as roof hatches and ventilation flaps. The device features two binary inputs for connecting potential-free contacts such as push buttons, switches, or a temperature sensor (I2). The inputs are pre-assigned to the output from the factory, allowing a function test before programming. For increased operational safety, for example in the event of overload, an integrated temperature monitoring system is included.

Flush-mounted blind actuator 1 channel LUXORliving J1 bus system KNX, other bus systems miscellaneous, mounting type flush-mounted, number of inputs 1, switching current resistive 10A, max. number of blind outputs 1, current type AC, protection rating (IP) IP20, minimum device box depth 35 mm.

BAB-Tec: No
Binary inputs integrated: Yes
Blinds: Yes
Bluetooth: No
Brand: THEBEN
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: 4800550
Manufacturer type: LUXORliving J1
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: Yes
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
