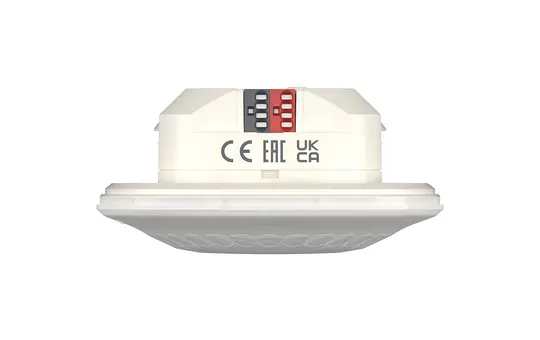

THEBEN LUXA 103 S360-12 KNX UP WH KNX presence detector Detection range 12 m

THEBEN LUXA 103 S360-12 KNX UP WH KNX presence detector | Detection range 12 m

Manufacturer: THEBEN
Article no.: 20046631
EAN: 4003468101971
Manufacturer item number: 1039052
Manufacturer type: LUXA 103 S360-12 KNX UP WH
Weight: 0,082 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
93,24 €
incl. VAT + shipping
pcs
This powerful KNX presence detector for flush ceiling mounting is a central component for intelligent building automation. It integrates seamlessly into KNX bus systems and offers the highest security thanks to KNX Data Secure. With two light channels, it enables sophisticated lighting control, optionally in switching mode or as constant light control. Additionally, two presence channels control heating, ventilation, and air conditioning (HVAC) systems. An integrated temperature sensor provides further valuable data. The 360° detection area covers 113 m² at a mounting height of 3 m. Configuration is flexible via ETS, remote control, or app via Bluetooth [1.1].



The presence detector (PIR) for flush ceiling mounting indoors offers a circular detection area of 360° and a range of Ø 12 m (113 m²) at 3 m mounting height. It is designed for the KNX bus system and features 2 channels for lighting control and 2 channels for presence and HVAC control. The automatic lighting control supports constant light control and switching mode, while dimmable lighting is possible both with and without daylight influence. Additionally, an integrated temperature sensor is present, and day/night switching is performed via telegram. The detector can be operated as full or semi-automatic and allows manual override via external KNX push buttons. Functions such as directed brightness measurement, selectable control speed, scene functionality, and switch-on delay are also included. Detection sensitivity can be adjusted for outdoor use, and settings are made via ETS software.
Air pressure sensor
No
BAB-Tec
No
Bluetooth
No
Brand
THEBEN
Brightness sensor
No
Casambi
No
Class
Presence detector
Crawl protection
Yes
DALI
No
DALI-2
No
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-TP
Yes
LED night light
No
Manufacturer item number
1039052
Manufacturer type
LUXA 103 S360-12 KNX UP WH
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Protection class (IP)
IP54
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for wall mounting
No
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
