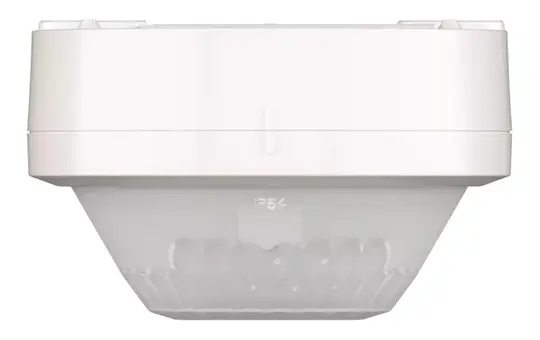

THEBEN LUXA 103 S360-100-28 AP WH Ceiling Presence Detector AP, 1 channel, rectangular acquisition | white

THEBEN LUXA 103 S360-100-28 AP WH Ceiling Presence Detector | AP, 1 channel, rectangular acquisition | white

Manufacturer: THEBEN
Article no.: 20046022
EAN: 4003468101780
Manufacturer item number: 1030082
Manufacturer type: LUXA 103 S360-100-28 AP WH
Weight: 0,205 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
This passive infrared presence detector for surface-mounted ceiling installation is the ideal solution for lighting control in long corridors. Its specially shaped, rectangular detection area covers a surface of 28 x 5 metres at a mounting height of 3 metres. The detector controls one lighting channel and is optimised for LED loads up to 400 W. Thanks to the IP54 protection rating, it is also suitable for damp rooms or protected outdoor areas. It is remote controllable, can be connected in parallel with other detectors, and supports semi-automatic or fully automatic operation. An integrated push-button input as well as teach-in and staircase light functions offer additional flexibility.

Corridor presence detector ceiling mounting LUXA 103 S360-100-28 Version presence detector, sensor type passive infrared, networkable, scanning angle 360°, optimal mounting height 3 m, staircase monitoring, override switch, max. range to one side 14 m, max. frontal range 14 m, detection field diameter on floor 140 m, remote controllable, adjustable response sensitivity, adjustable response brightness, with signal unit, teach function for response brightness, suitable for ceiling mounting, mounting type surface-mounted, connection type screw terminal, material plastic, material quality thermoplastic, halogen-free, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, protection rating (IP) IP54, impact resistance IK04, min. switch-on time 15 s, max. switch-on time 30 min, switch-off delay 15 s, horizontal detection angle 0 ... 360°, response brightness 5 ... 1000 lx, max. switching capacity 2300 W, max. switching capacity LED 400 W
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
Brand
THEBEN
Brightness sensor
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI-2
No
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Humidity sensor
No
Integrated constant light control
No
LED night light
No
Manufacturer item number
1030082
Manufacturer type
LUXA 103 S360-100-28 AP WH
Manufacturer's colour
white
Material
Plastic
Mounting type
Surface-mounted
Protection class (IP)
IP54
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
glossy
Temperature sensor
No
VOC sensor
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/
