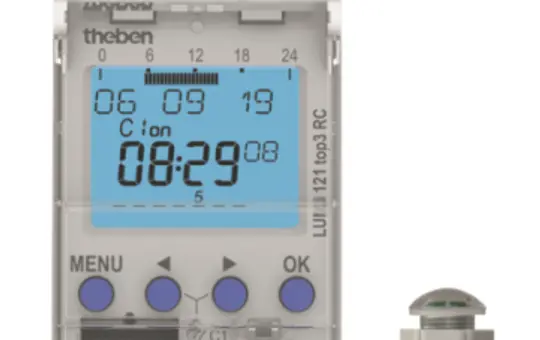

THEBEN LUNA 121 top3 RC EL Twilight Switch 1 channel, built-in light sensor

THEBEN LUNA 121 top3 RC EL Twilight Switch | 1 channel, built-in light sensor

Manufacturer: THEBEN
Article no.: 20056462
EAN: 4003468120118
Manufacturer item number: 1210230
Manufacturer type: LUNA 121 top3 RC EL
Weight: 0,187 kg
Available on request
Electrical appliance take-back
pcs
As a multifunctional light control device, this 1-channel DIN rail switch combines the functions of a timer with those of a twilight switch. It features a weekly programme and is supplied with an external built-in light sensor (IP66). For always accurate timekeeping, the device is RC-capable and can be synchronised via an external antenna with DCF or GPS signals. Programming is particularly convenient and secure via the app using the optional Bluetooth OBELISK top3. The device is designed for high LED loads up to 600 watts and offers professional features such as an operating hour counter, DuoFix terminal blocks, and a power reserve.

The twilight switch with integrated weekly timer controls lighting using an external light sensor and supports one channel as well as one external input. It allows time synchronisation via external antennas such as top2/3 RC-DCF or GPS. With 84 memory slots and three special programmes, it offers flexible programming. App programming is securely carried out via the optional Bluetooth Low Energy OBELISK top3. Switching brightness and switch-on/off delays are digitally and separately adjustable. A display shows the current lux value and the switching status. Additional functions include support for up to four sensors and ten devices per sensor, zero-cross switching for high lamp loads, as well as an interface for the OBELISK top2 memory card, continuous ON/OFF switching, test function, switching preselection, display illumination, PIN coding, and an operating hour counter.
Annual program
No
Astro program
No
Brand
THEBEN
Class
timers
Daily program
No
Division units
2 TE
Manufacturer item number
1210230
Manufacturer type
LUNA 121 top3 RC EL
Number of channels
1
Weekly program
Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet
Manufacturer information
THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
