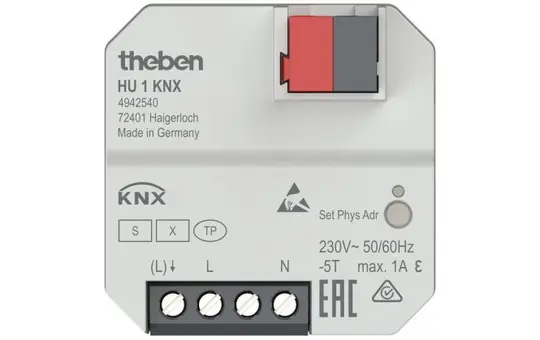

THEBEN HU 1 KNX KNX Heating Actuator UP | 1-fold

Manufacturer: THEBEN

Article no.: 20045869

EAN: 4003468491522

Manufacturer item number: 4942540

Manufacturer type: HU 1 KNX

Weight: 0,088 kg

In stock

Delivery: 2-3 business days

pcs

For precise and silent room temperature control within the KNX system, this single-channel heating actuator for flush mounting is the ideal choice. It controls thermal actuators (230 V AC) silently and ensures secure commissioning and communication thanks to support for KNX Data Secure. A particular strength is its flexible function selection: it can be operated either as a pure heating actuator with continuous or switching control output or as an independent heating controller with integrated logic for heating and cooling. Its especially compact housing facilitates installation. Two binary inputs allow connection of push-buttons, window contacts, or an external temperature sensor. An integrated valve protection function, summer mode, and temperature monitoring ensure long-lasting and safe operation.

Heating actuator 1-channel flush-mounted DataSecure HU 1 KNX Bus system KNX, Other bus systems none, Mounting type flush-mounted, With bus coupling, Control output continuous, Control output switching, Valve protection function, Number of digital inputs 0, Max. switching current (resistive load) 1A, Number of outputs 1, Max. output current 1A, Switching voltage 230 ... 230V, Protection rating (IP) other, Minimum device box depth 40mm,

Brand: THEBEN
Casambi: No
Class: Heating actuators
DALI: No
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: 4942540
Manufacturer type: HU 1 KNX
Matter: No
Modbus: No
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet

Declaration of Conformity

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: THEBEN
Casambi: No
Class: Heating actuators
DALI: No
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Manufacturer item number: 4942540
Manufacturer type: HU 1 KNX
Matter: No
Modbus: No
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No

Documents
