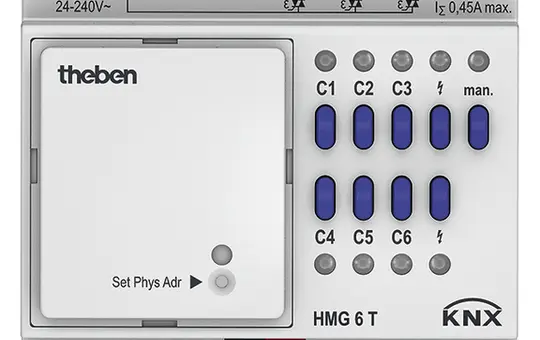

THEBEN HMG 6 T KNX heating actuator MIX 6-fold, basic module

THEBEN HMG 6 T KNX heating actuator MIX | 6-fold, basic module

Manufacturer: THEBEN
Article no.: 20011064
EAN: 4003468490129
Manufacturer item number: 4930240
Manufacturer type: HMG 6 T KNX
Weight: 0,217 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs


This KNX heating actuator base device from the MIX2 series controls six heating channels with a width of 4 TE. It can be expanded up to 18 channels with the HME 6 T module. Communication is protected by KNX TP Data Secure. The actuator features six potential-free triac outputs (24 V–250 V AC) and supports both continuous and switching control variables. It can include boiler control and operate a circulation pump. Functions such as an emergency programme in case of bus failure, summer operation, and valve protection ensure safe and efficient operation. LED indicators and manual switches allow control directly on the device.

Heating actuator MIX2, base module HMG 6 T KNX bus system KNX, mounting type REG, width in modular units 4, with bus coupling, removable bus module, continuous control variable, switching control variable, valve protection function, manual switching, number of digital inputs 0, max. switching current (resistive load) 0.45A, number of outputs 6, max. output current 0.5A, switching voltage 24 ... 250V, protection class (IP) IP20.
BAB-Tec
No
Blinds
No
Bluetooth
No
Brand
THEBEN
Casambi
No
Class
Heating actuators
DALI
No
Dimming
No
Division units
4 TE
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
4930240
Manufacturer type
HMG 6 T KNX
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of outputs
6
Rated voltage outputs
230V AC | 24V DC
Shelly
No
Siemens LOGO!
No
Switch
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
