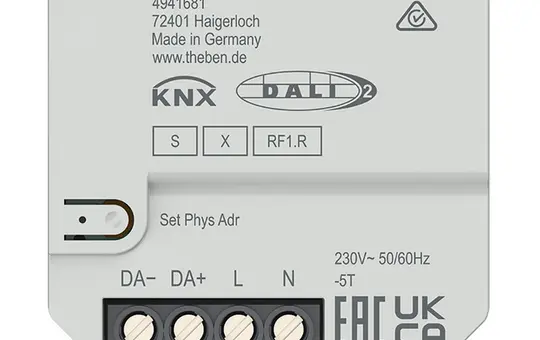

THEBEN DU 1 DALI S KNX-RF-DALI Gateway UP | 1-fold

Manufacturer: THEBEN

Article no.: 20046121

EAN: 4003468491645

Manufacturer item number: 4941681

Manufacturer type: DU 1 DALI S RF KNX

Weight: 0,088 kg

In stock

Delivery: 2-3 business days

pcs

This single-channel KNX wireless DALI actuator for flush-mounted installation forms the perfect interface between the DALI and KNX bus systems. Thanks to its KNX RF technology and support for KNX Data Secure, secure and encrypted communication is ensured at all times. The DALI-2 certified device allows easy commissioning of up to 30 electronic ballasts (EBs) in broadcast mode. It flexibly controls RGB, RGBW, and tunable white luminaires (DT-8) as well as conventional lighting. Its particularly compact housing allows for universal installation. Two binary inputs for potential-free contacts such as push-buttons or window contacts expand the functionality. Conveniently, input I1 is assigned to the output from the factory, enabling a function test even without programming. An integrated temperature monitoring increases operational safety.

Flush-mounted single-channel wireless DALI actuator KNX RF, Data Secure DU 1 DALI S RF KNX bus system KNX, KNX wireless bus system, Other bus systems none, Wireless bidirectional, Version interface lighting system/DALI, Mounting type flush-mounted, Max. number of devices per channel 30, Operating voltage 230 ... 230V, Voltage type AC/DC, Power consumption 0.7W, Protocol other, Protection class (IP) IP20.

Additional plug-in required: No
Amazon Alexa: No
Apple HomeKit: No
BAB-Tec: No
Bluetooth: No
Brand: THEBEN
Broadcast: Yes
Casambi: No
Class: KNX DALI gateway
DALI: Yes
DALI-2: Yes
DT6: Yes
DT8: Yes
ENOcean: No
free@home: No
Gira One: No
Google Assistant: No
Group control: Yes
Hager KNXeasy: No
HCL: Yes
HSV: No
Individual control: No
Integrated controller: No
Integrated DALI power supply: No
Integrated logic: No
JUNG HOME: No
KNX: Yes
KNX-RF: Yes
KNX-Secure: Yes
KNX-TP: No
Local/manual operation: No
Manufacturer item number: 4941681
Manufacturer type: DU 1 DALI S RF KNX
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Number of channels: 1
Number of devices: 30
RGB: Yes
RGBW: Yes
Scenes: No
Shelly: No
Siemens LOGO!: No
suitable for DALI-2 sensors: Yes
Target protocol: DALI
Theben LUXORliving: No
Thread: No
TW: No
Type of transmission: radio
Web browser: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
XY: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data sheet

Declaration of Conformity

Manufacturer information

THEBEN
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE

info@theben.de
www.theben.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
