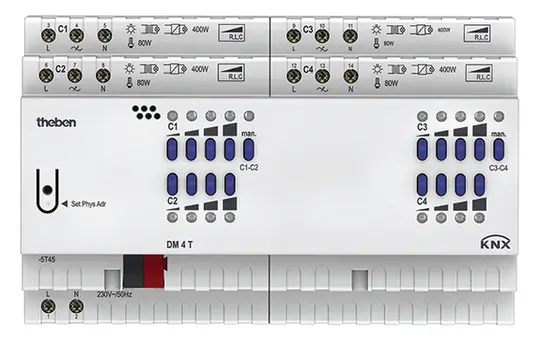

THEBEN DM 4 T KNX dimmer actuator FIX | 4-fold

Manufacturer: THEBEN

Article no.: 20011163

EAN: 4003468490808

Manufacturer item number: 4940275

Manufacturer type: DM 4 T KNX

Weight: 0,439 kg

In stock

Delivery: 2-3 business days

pcs

For larger lighting projects in KNX systems, this 4-channel universal dimmer actuator is the ideal solution. The 8 TE wide modular device communicates securely via KNX TP Data Secure and offers four channels with 400 W/VA power each. It reliably dims LEDs, incandescent, and halogen lamps. Different dimming curves and automatic load detection ensure smooth dimming. Each channel can also be used as a control output for up to five dimmer boosters (DMB 1 T). Manual operation on the device allows testing of the connected lights in five brightness levels (0, 25, 50, 75, 100%).

Dimmaktor FIX2 module, KNX DM 4 T KNX bus system KNX, other bus systems none, version dimmer actuator, mounting type REG, width in modular units 8, with bus coupling, local/manual operation, with LED indicator, number of outputs 4, output power 5 ... 400W, power supplement usable, load type universal and LED retrofit, max. switching power LED 400W, voltage 230 ... 230V, frequency 50 ... 50Hz, protection class (IP) IP20,

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: THEBEN
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: No
Different phases can be connected: Yes
Dimming: Yes
Dimming method: Phase lead/edge
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 4940275
Manufacturer type: DM 4 T KNX
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Output power in W: 400
Parallel operation of channels possible: Yes
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
