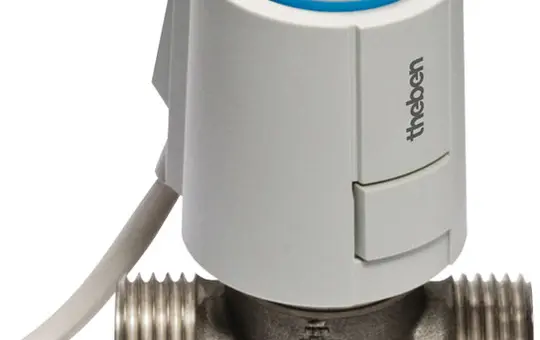

THEBEN ALPHA 5 230 V Heating Actuator | 230V, NC

Manufacturer: THEBEN

Article no.: 20011136

EAN: 4003468901038

Manufacturer item number: 9070441

Manufacturer type: Stellantrieb ALPHA 5 230 V

Weight: 0,122 kg

In stock

Delivery: 2-3 business days

pcs

This silent 230 V actuator is designed for installation on heating circuit distributors or individual radiator valves and is compatible with RAMSES devices. The valve is closed when there is no power. Installation is straightforward with a simple plug-on mounting on the appropriate valve adapter. A function and adjustment check provides visual feedback on the correct fit. Increased safety is ensured by the removable "SafeGuard" dismantling protection as well as guaranteed surge protection. With a 1-metre connection cable and an IP54 protection rating, the actuator is a robust and reliable component for modern heating systems.

Actuator ALPHA 5 230 V
Suitable for valves, mains voltage 230 V AC, control signal two-point, communication bus other, communication protocol other, power consumption in operation 1 W, design linear, control type on/off, connection cable length 1 m, transmission hydraulic, connection to valve none, de-energised when closed, type of safety function other, safety function mode NC normally closed, status feedback none, limit switches none, with mechanical position indicator, running time 180 s, adjustment force 100 N, stroke length 4 mm, max. rotation angle 360°, protection class (NEMA) 13, protection rating (IP) IP54, max. electrical power consumption 1 VA, ambient temperature 0 ... 60°C, height 44 mm, width 60 mm, depth 61 mm, housing material plastic,

Brand: THEBEN
Class: Actuators
Configuration: Normally closed (NC)
Manufacturer item number: 9070441
Manufacturer type: Stellantrieb ALPHA 5 230 V
Nominal voltage in V: 230
