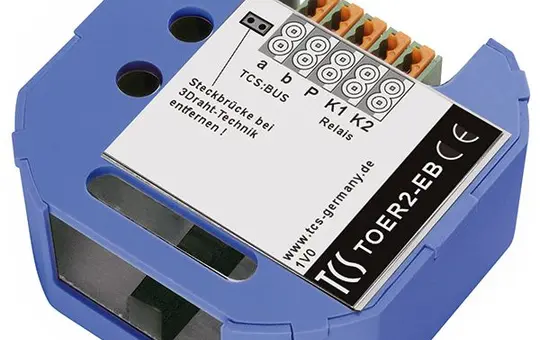

TCS TOER2-EB Door Opener Relay UP standard

TCS TOER2-EB Door Opener Relay UP | standard

Manufacturer: TCS
Article no.: 20085483
EAN: 4035138010078
Manufacturer item number: TOER2-EB
Manufacturer type: TOER2-EB
Weight: 0,04 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
for targeted door opening with more than one outdoor station, protection rating: IP 20, for installation in flush-mounted box and to be protected against moisture, potential-free relay contact (normally closed: 24 V DC / 2 A), with own :BUS connection for location-independent installation, alternatively control functions can also be evaluated, door opener time factory set: 1 second / adjustable with service device, 2- or 3-wire technology possible, max. 10 TOER2 devices usable in 2-wire technology, input current (2-wire): I(a) = 0.9 mA at rest, input current (3-wire): I(a) = 0.4 mA, I(P) = 0.5 mA at rest, max. input current (3-wire): I(Pmax) = 12 mA, max. conductor diameter: 0.8 mm, permissible ambient temperature: -20 degrees C to 50 degrees C, programming with service device, dimensions: H 52 mm x W 52 mm x D 23 mm
Brand
TCS
Class
Accessories
Installation technology
Bus system
Manufacturer item number
TOER2-EB
Manufacturer type
TOER2-EB

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
TCS
TCS TürControlSysteme AG
Geschwister-Scholl-Str. 7
39307 Genthin
DE

info@tcsag.de
www.tcsag.de/
