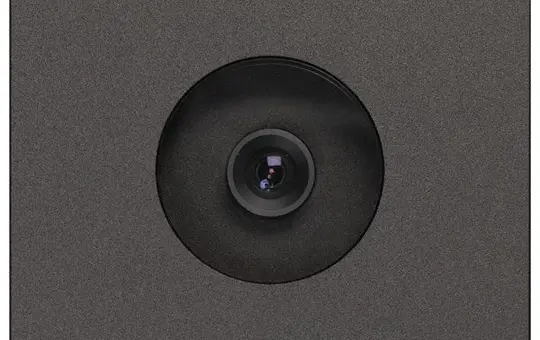

TCS AMI10510-0057 Built-in Camera Module AMI 130° | black anodized

TCS AMI10510-0057 Built-in Camera Module AMI | 130° | black anodized

Manufacturer: TCS
Article no.: 20084641
EAN: 4035138042017
Manufacturer item number: AMI10510-0057
Manufacturer type: AMI10510-0057
Weight: 0,509 kg
Available on request
Electrical appliance take-back
pcs
Camera module for flush mounting for TCS:BUS systems, integrable behind 3 mm front panels, flush installation with spacer plates (1.5–2.5 mm), module grid 120 mm. Connection to AMI10105-0710 / AMI11110-0010. Dimensions: 105×105×43 mm, visible cut-out: 82×82 mm. Front panel: anodised aluminium black, viewing window: acrylic glass. Environment: 10–50 °C. Supply: 24 V ±8 %, current consumption: max. 35 mA. Camera: 1/4" CMOS, 380 TVL, PAL 648×488 px, lens 2.0 mm (F2.5), light sensitivity 1.0 lx, detection angle: 100° H / 76° V / 133° D. Video output: 1.1 Vp-p (differential, coaxial). Short-circuit detection: ax-bx, ax-Px, bx-Px. 1 internal station line, max. 4 gateways. Scope of delivery: screwdriver, 4×M4 nuts, 3×0.5 mm spacer foils. Note: Do not expose to direct sunlight.
Brand
TCS
Class
Cameras
Colour
black
Installation technology
Bus system
Location
Outside | Inside
Manufacturer item number
AMI10510-0057
Manufacturer type
AMI10510-0057
Material
aluminum
Mounting type
Installation
Thermal imaging
No
