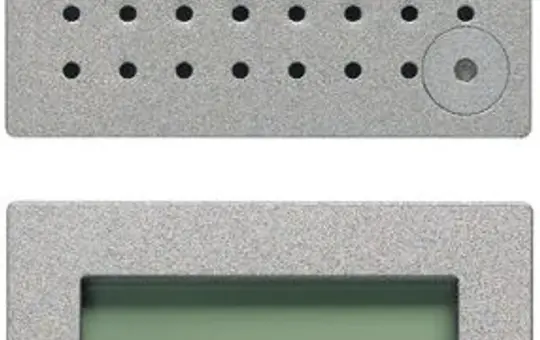

TCS AMI10105-0710 Module combination with AMI display 1,000 residential units | silver anodized

TCS AMI10105-0710 Module combination with AMI display | 1,000 residential units | silver anodized

Manufacturer: TCS
Article no.: 20084634
EAN: 4035138022132
Manufacturer item number: AMI10105-0710
Manufacturer type: AMI10105-0710
Weight: 1 kg
Available on request
Electrical appliance take-back
pcs
Function module of the AMI series for up to 1,000 call destinations. Flush-mounted in wall box, made of anodised aluminium (silver). Graphic LCD display (160 x 160 pixels), individually configurable start screen, multilingual user guidance. Call destination selection via name list or entry of apartment number. Optional display of date, time and temperature. Integrated microphone, PC connection via PS/2. Operation and door call via keyboard or rotary dial module. Power consumption: 140 mA (idle), 245 mA (max). Dimensions: clear dimension 82 × 82 mm, display module 131 × 111 × 45 mm, speaker module 105 × 105 × 27 mm. Operating temperature −20 °C to +50 °C. Avoid direct sunlight. Permitted only for SELV/PELV safety extra-low voltages.
Brand
TCS
Class
Outstations
Colour
silver
Installation technology
Bus system
Manufacturer item number
AMI10105-0710
Manufacturer type
AMI10105-0710
Material
aluminum
