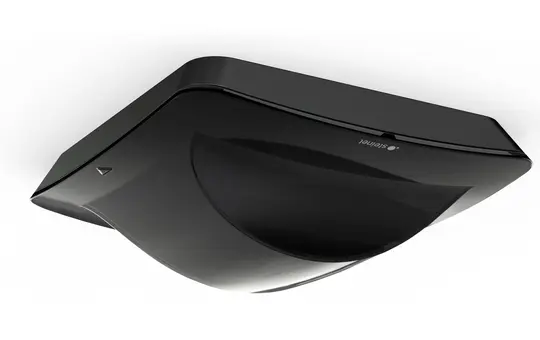

STEINEL 082055 Hallway Presence Detector | UP, COM1, IP20, 360° | SW | 25 x 3 m

Manufacturer: STEINEL

Article no.: 20066534

EAN: 4007841082055

Manufacturer item number: 082055

Manufacturer type: 082055

Weight: 0,177 kg

Available on request

175,73 €

incl. VAT + shipping

pcs

The smarter aisle sensor knows more. Perfect radial detection up to 25 m – ideal for long aisles and corridors. Range adjustable in both directions. Contemporary Control PRO II design. Equipped with Bluetooth technology. Interfaces for COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP, and BT IPD (slave). Light measurement is not possible with the black sensors. An external light meter must be integrated via Bluetooth or KNX.

Brand: STEINEL
Brightness sensor: Yes
Class: Presence detector
Crawl protection: Yes
Detection angle in °: 360
Detection area: rectangular
Detection area diameter in m: 25
Detection type/sensor type: High frequency
Different bus system: -
Frontal range in m: 12.50
Horizontal detection angle: 360
Installation height in m: 2.80
Installation location: Ceiling
Manufacturer item number: 082055
Manufacturer type: 082055
Manufacturer's color: black
Reach laterally in m: 12.50
suitable for installation in switch ranges: Yes
Supply voltage: 230V AC
Surface: matt
Type of transmission: radio

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

STEINEL
STEINEL GmbH
Dieselstr. 80-84
33442 Herzebrock-Clarholz
DE

info@steinel.de
www.steinel.de/steinel-group/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
