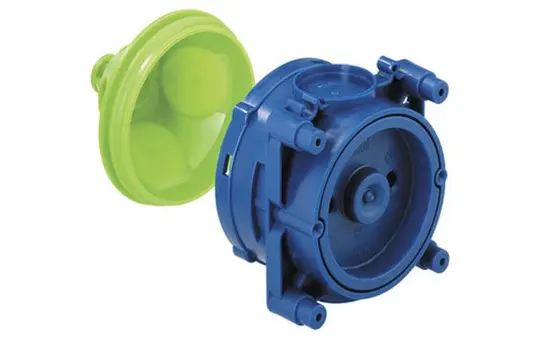

SPELSBERG U 71 KUD-M5 Dome Box | Membrane for perforation

Manufacturer: SPELSBERG

Article no.: 20039926

EAN: 4013902877058

Manufacturer item number: 97124801

Manufacturer type: U 71 KUD-M5

Weight: 0,045 kg

Available on request

pcs

Junction box, also usable as a ceiling box, 2 screw domes with a screw distance of 60 mm, combinable at a standard distance of 71 mm, fully insulated cable entry, suitable for all types of formwork and counter formwork, with protection class IP30, rated insulation voltage: 400 V AC, halogen-free, number of 45° entries: 4, 2-part, membrane for punching, sealing range M16-M25
Dimensions: 71 x 71 x 91 mm

Assembly: without
Brand: SPELSBERG
Class: Accessories
Depth in mm: 71
Halogen free: Yes
Height in mm: 91
Manufacturer item number: 97124801
Manufacturer type: U 71 KUD-M5
Mounting type: Concrete installation
Protection class (IP): IP30
Width in mm: 71

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

SPELSBERG
Günther Spelsberg GmbH + Co. KG
Im Gewerbepark 1
58579 Schalksmühle
DE

info@spelsberg.de
www.spelsberg.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Assembly: without
Brand: SPELSBERG
Class: Accessories
Depth in mm: 71
Halogen free: Yes
Height in mm: 91
Manufacturer item number: 97124801
Manufacturer type: U 71 KUD-M5
Mounting type: Concrete installation
Protection class (IP): IP30
Width in mm: 71
