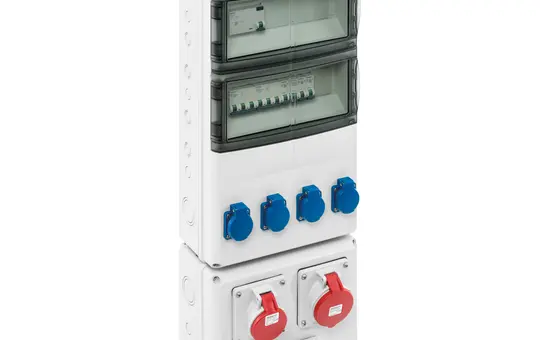

Socket combination, with protection class IP44, ready for connection according to EN61439-3, with central terminal block 4 - 25mm², 5-pole, also suitable for looping through the supply line, tool-free removable standard rails for easy cable routing inside the enclosure, CEE sockets with 20° tilt, simple combination with STK additional enclosures or AK Air distributors with flange openings (AK-F), including flanges, available modular units: 28, equipped with: 4 x miniature circuit breaker C16A, single-pole
1 x miniature circuit breaker C16A, 3-pole
1 x miniature circuit breaker C32A, 3-pole
1 x residual current circuit breaker (RCCB), 63/0.03A, 4-pole, Type A
4 x SCHUKO® socket (front side), 230V
1 x CEE socket (front side), 16A, 400V
1 x CEE socket (front side), 32A, 400V
1 x CEE socket (front side), 63A, 400V
Brand
SPELSBERG
Class
Empty housing
Colour
gray
Depth in mm
1050
Height in mm
232
Manufacturer item number
73020401
Manufacturer type
STK 2834-K163263
Protection class (IP)
IP44
Width in mm
315
