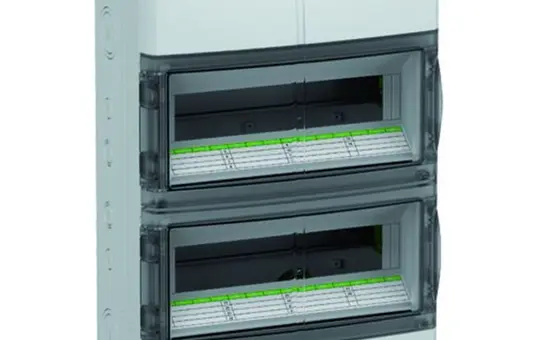

SPELSBERG AK 25 small distributor AK Air 2-row, 28 HP

SPELSBERG AK 25 small distributor AK Air | 2-row, 28 HP

Manufacturer: SPELSBERG
Article no.: 20033008
EAN: 4013902496785
Manufacturer item number: 73342801
Manufacturer type: AK 28
Weight: 3,106 kg
In stock
Delivery: 4-8 business days
116,22 €
incl. VAT + shipping
pcs
Small distribution board, with protection class IP65, 2-row, 28 available modules, with integrated ventilation elements to reduce condensation, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified according to VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24)), DLG (ammonia resistance), UL-EU (EN 62208), UL-EU (EN 61439-1/-2), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1 & EN IEC 61439-7), top and bottom metric knockouts for universal cable entries with cable glands and/or double membrane glands, top with elastic entries DMS M20 Pre-equipped with screwless PE/N terminal rail, each with 6 screwable terminal points 2.5-16mm² and 2 1/2x14 screwless terminal points 1.5-4mm²
Dimensions: 315 x 450 x 155mm
Included accessories: Double membrane connectors: 1x M16, 5x M20, 2x M25, 1x M32, 1x M40, sealing plugs, cover and labeling strips
Brand
SPELSBERG
Class
Small distributor
Color
gray
Depth in mm
450.00
Division units
28
Height in mm
155.00
Manufacturer item number
73342801
Manufacturer type
AK 28
Mounting type
Surface-mounted
Number of rows
2
old Voltus number
1665238
Width in mm
315.00
